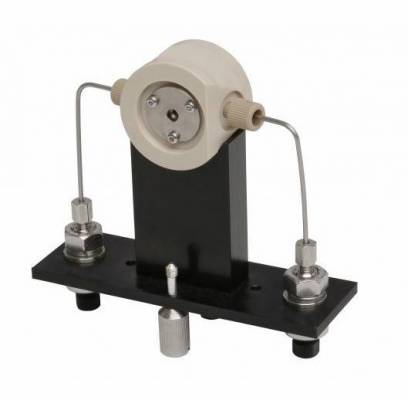

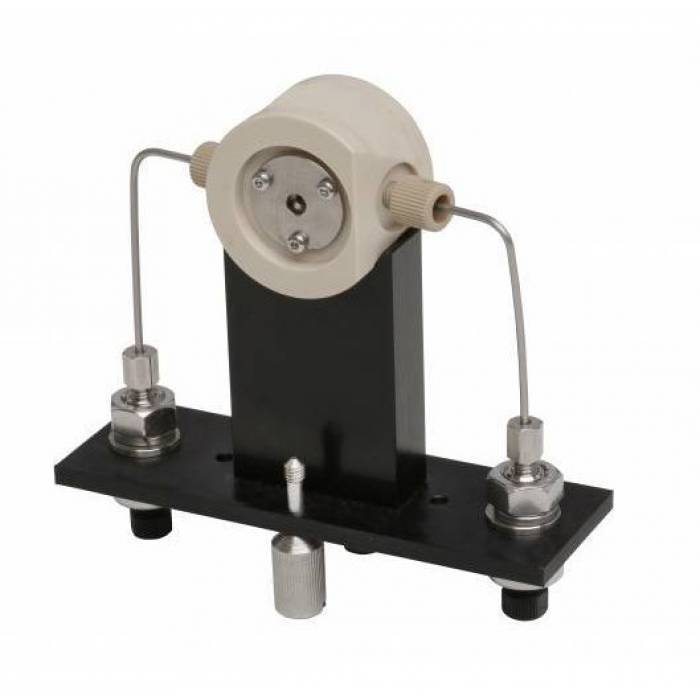

Analytical flow-cells PEEK in bracket
Analytical flow-cells PEEK in bracket allows to use TOY L and TOY H detectors also for for analytical applications.
| Image | PN | Type | Optical Path Length [mm] | Inside Volume (µl) | Max.flow-rate (ml/min) | Thread UNF | Tube OD | Wetted material | Request quote |
|---|---|---|---|---|---|---|---|---|---|
|
|
PN
ANA97001
|
Type
Analytical Cell HPLC 09 L PEEK (l=10 mm, 1/16", UNF 10-32)
|
Optical Path Length [mm]
10
|
Inside Volume (µl)
20
|
Max.flow-rate (ml/min)
50
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Quartz glass
|
Actions
|
|
|
PN
ANA96001
|
Type
Analytical Cell HPLC 10 L PEEK (l=5 mm, 1/16", UNF 10-32)
|
Optical Path Length [mm]
5
|
Inside Volume (µl)
8
|
Max.flow-rate (ml/min)
50
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Quartz glass
|
Actions
|
- Description
- Files to download 1
Analytical flow-cells PEEK in bracket HPLC10 L and HPLC09 L have a unique design with an optical length of 5 or 10 mm. Theier desing allows to use them in TOY L and TOY H detectors also for for analytical applications. Cells are connected via tubing with OD 1/16" and thread UNF 10-32 . The internal volume of the analytical cells is 8 or 16 µl. The maximum flow rate is 50 ml/min
These cells are suited for ECOM detectors TOY L, and TOY H type.
Advantages of the Analytical flow-cells PEEK
• Unique desing which allows to use TOY L and TOY H detectors also for for analytical applications.
• Extended cell life – thanks to the new cell window design
• Increased temperature resistance range – now from -50 °C up to 100 °C
• More easy exchangeable cells – according to preferred sensitivity/application
| Filename | Type |
|---|---|
| Info-Flow-Cells-PFC-L-PEEK-en-01.pdf | pdf (343,04 KB) |
