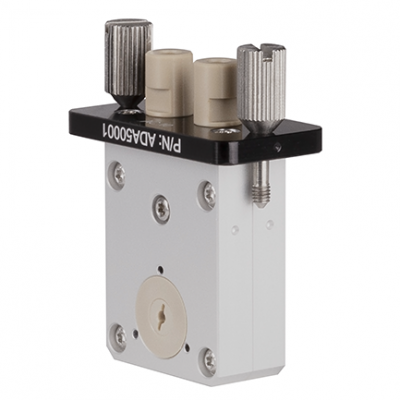

Analytical cell AC10

l=10 mm; tubing with OD 1/16” and thread UNF10-32

For the ECD detectors series. Optical path length 10 mm

Availability
Manufacturer
ECOM spol. s r.o.
Part number
ADA5000X

This analytical cell is designed for use in the ECD detector series. Cell internal volume is 16 µl and its optical path is 10 mm. Also available in configurations made of certified bio-inert materials.

Volume/optical path length 16µl/10nm
Material PEEK, stainless steel, fused silica
Outer diameter of capillary 1/16”
Casing dimensions 54 x 28 x 77 mm
Maximal flow rate 10ml/min
Connecting thread UNF10-32
Maximum operating pressure 5 MPa
Internal volume (exchanger/capillaries) 16µl
Weight 108 g
Filename Type
Info-ECD2000_flow_cells-en-03.pdf pdf (273,84 KB)
