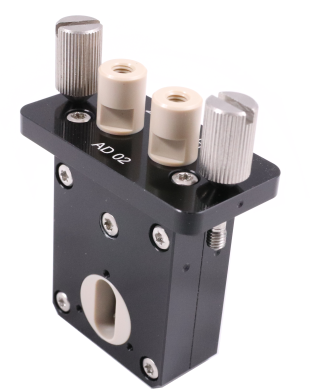

Analytical cell AD02

l=2mm; tubing with OD 1/16” and thread UNF10-32

For ECDA2800. Optical path length 2 mm.

Availability
Manufacturer
ECOM spol. s r.o.
Part number
ANW60000

This analytical cell is designed for use within ECDA detector series. Cell internal volume is 1 µl and its optical path is 2 mm. Also available in configurations made of certified bio-inert materials.

Volume/optical path length 1 µl / 2 mm
Material PEEK, stainless steel, fused silica
Outer diameter of capillary 1/16”
Casing dimensions 54 x 28 x 77 mm
Maximal flow rate 10 ml/min
Connecting thread UNF10-32
Dimensions W x H x D 54 x 28 x 77 mm
Maximum operating pressure 5 MPa
Internal volume (exchanger/capillaries) 1µl
Weight 108 g
Filename Type
Info-ECD2000_flow_cells-en-03.pdf pdf (273,84 KB)
