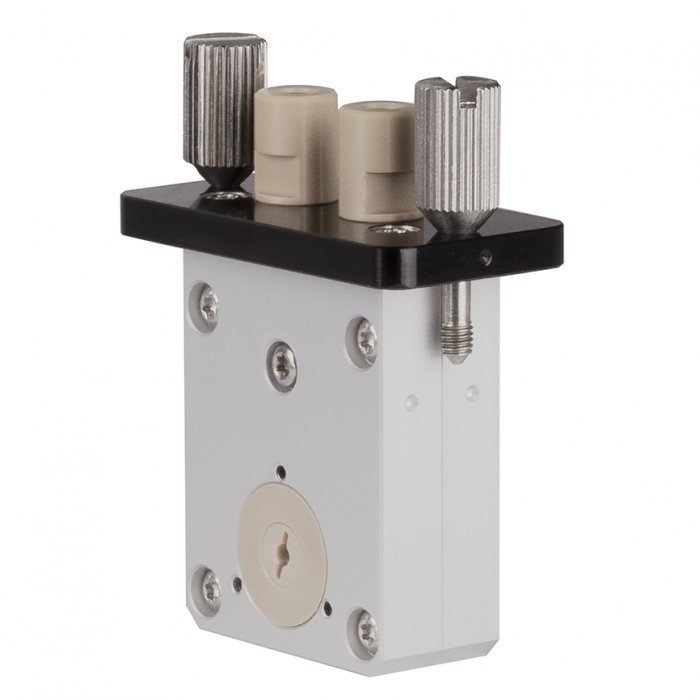

Analytical cell AD05

I=5 mm; tubing with OD 1/16” and thread UNF10-32

For ECDA2800. Optical path length 5 mm.

ECOM spol. s r.o.
Part number

This analytical cell is designed for use within the ECDA detector series. Cell internal volume is 8 µl and its optical path is 5 mm. Also available in configurations made of certified bio-inert materials.

Volume/optical path length 8 µl / 5 mm
Material PEEK, stainless steel, fused silica
Outer diameter of capillary 1/16”
Casing dimensions 54 x 28 x 77 mm
Maximal flow rate 10 ml/min
Connecting thread UNF10-32
Dimensions W x H x D 54 x 28 x 77 mm
Maximum operating pressure 5 MPa
Internal volume (exchanger/capillaries) 8µl
Weight 108 g
