Analytical External Flow Cells PEEK
With their small internal volume and large optical path lengths of 5 or 10 mm, AFC EX PEEK flow cells can provide accurate and reliable results in various analytical applications, where a high resolution is required. They are connected via optical-fiber cables to ECOM detectors equiped with SMA 905 connectors.
| Image | PN | Name | Connecting thread | Optical path length [mm] | Max Pressure [MPa/PSI] | Wetted Material | Internal volume [µm] | Request quote |
|---|---|---|---|---|---|---|---|---|
|
|
PN

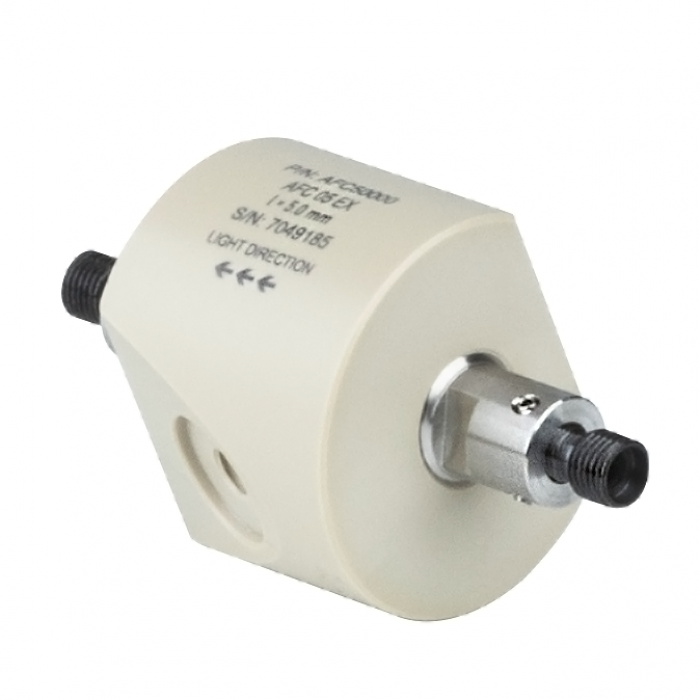

AFC50000
|
Name
External Analytical flow cell AFC5 EX (l=5mm)
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
5
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK ; Quartz glass
|
Internal volume [µm]
10
|
Actions
|
|
|
PN
AFC10000
|
Name
External Analytical flow cell AFC10 EX (l=10mm)
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
10
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK ; Quartz glass
|
Internal volume [µm]
20
|
Actions
|
- Description
Improved design for maximum efficiency
The conical design of the cell minimizes the influence of the flow rate and temperature flactuations, ensuring stable and consistent results. Unlike previous cell types, the AFC EX is supplied without capillaries, allowing the user to select the appropriate inner diameter of the capillary. This allows flow rates of up to 50 ml/min to be achieved, providing flexibility for different applications.
Optimized for low flow rates
For applications where the flow rate is less than 10 ml/min, a hydrodynamic resistor is available to eliminate bubble formation. This component is connected to the output capillary, ensuring stable operation and high accuracy even at small flow rates.
Safety and flexibility of use
The cell is to be used outside the detector, while being connected to the instrument via a fiber optic cable. This design ensures safe use in applications where there is a risk of explosion or contamination. With our instrument, you can work with confidence, knowing that your measurements are not only accurate but also safe.
Why choose the AFC EX flow cells
- High measurement accuracy with minimal effect from ambient conditions.
- Flexible configurations to adjust flow rates to suit your needs.
- Safety design for use in demanding environments.
- An ideal choice for a wide range of applications including chemical analysis and environmental monitoring.
