PEEK Analytical cell in bracket HPLC 09

l=10mm; tubing with OD 1/16" and thread UNF 10-32

For detectors TOY18DAD-H, TOY18DAD-L, TOY14DAD, and FLASH14DAD

Availability
Manufacturer
ECOM spol. s r.o.
Part number
ANA97000

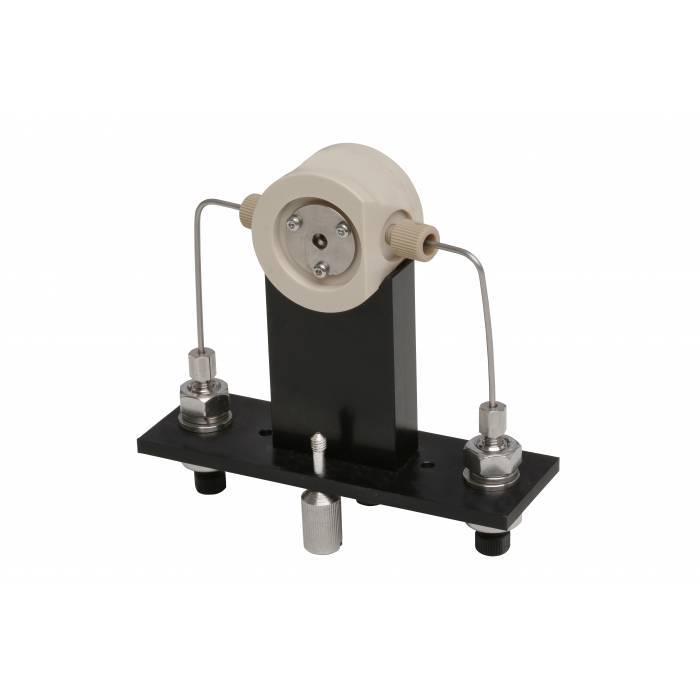

Analytical cell in bracket HPLC09 PEEK has a unique design with an optical length of 10 mm. It is designed for analytical applications and it is possible to connect it using tubing with OD 1/16" and thread UNF 10-32. Internal volume of preparative cell is 20 µl. Maximum flow rate is 50 ml/min.

If you are looking for a different cells parameters and materials , see our website or contact us. We are keen to design cell according your needs.

Volume/optical path length 20 µl/10 mm
Wetted materials PEEK, quartz, FEP
Body material PEEK
Maximal flow rate 50 ml/min
Connecting thread UNF 10-32
Maximum operating pressure 2 MPa (290 psi)
