Analytical pump LCP 4020.5
0,02 - 15 ml/min, built in unit with external controlling
- Description
- Parameters

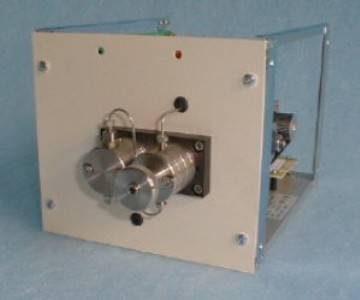

LCP 4020.5 PUMP
is derived from type LCP 4020.3 with main and auxiliary pump pistons connected in series. Flow-rates ranging is from 0.02 to 15 ml/min and maximum operating pressure of 15 MPa.
The pump is designed as built-in unit without own power supply.
The unit is equipped with the following:
- Electronic safeguard of maximum operating pressure
- Piston seals and check valves provided by well-known companies
- Back-flushing of pistons
- External flow rate control (using voltage)
| Flow rate | 0.02 – 15.00 ml/min |
|---|---|
| Pumping system | two plungers dia. 1/8“ connected in a series (main and auxiliary plungers operating with different thrusts) |
| Maximum operating pressure | 15 MPa |
| Adjustable upper pressure limit | fix adjusted up to 15 MPa |
| Power supply | 2 x 15 + 2 x 18 V ± 10%, 50/60 Hz |
| Power input | 40 VA |
| Dimensions W x H x D | 180 x 160 x 240 mm |
| Weight | 3,5 kg |
| Material of pump heads | stainless steel |
| Method of setting | using DC voltage 0 - 10 V |
| Accuracy of selected flow | ± 2% |
