BABY18FIX Single UV Detector
The Single UV detector version measures at one fix wavelength which is adjusted in production according to customer order in the ranges of 200 – 600 nm.
Related variants
- Description
- Parameters
- Files to download 1
More wavelengths or a scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

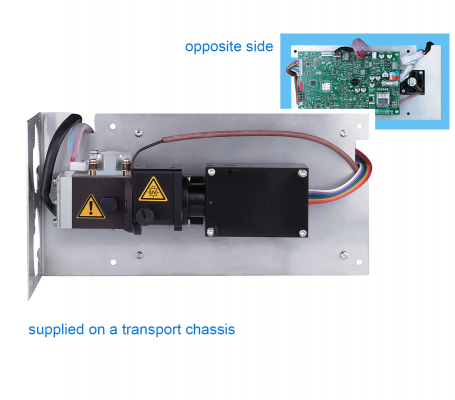

The unit is supplied with PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and control the unit.
Thanks a new miniature deuterium lamp has the unit surprisingly small dimensions.
Most important features of BABY18DAD detectors:
•small dimensions
•built-in lamp working hours counter
•easy replacement of flow cell
•measuring at more wavelengths simultaneously
•sophisticated diagnostic software
AMY17 board allows to have optional extension modules (for additional cost):
•Analog outputs board
•LAN and USB board
•Display with keyboard
•Leakage sensor
| Number of channels (Signals) | One fix wavelength in range of 200 – 600nm |
|---|---|
| Number of CCD elements | 256 |
| Accuracy of adjustment | ± 1 nm /±0.5 nm |
| Typical spectral half-width | 8 nm |
| Reproducibility | ±0.5 nm |
| Light source | Deuterium lamp |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/h |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | FEP; fused silica, stainless steel |
| Maximal flow rate | 500 or 3 000 ml/min depending on the cell |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Dimensions W x H x D | 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in) |
| Weight | 3.20 kg (7.06 lb) |
| Optical cables | no |
| Filename | Type |
|---|---|
| Info-BABY18FIX_detector-en-02.pdf | pdf (228,9 KB) |
