Black PEEK Preparative flow-cells
Black PEEK Preparative flow-cells are used in special separation applications.
| Image | PN | Type | Optical Path Length [mm] | Inside Volume (µl) | Max.flow-rate (ml/min) | Thread UNF | Tube OD | Wetted material | Request quote |
|---|---|---|---|---|---|---|---|---|---|
|
|
PN

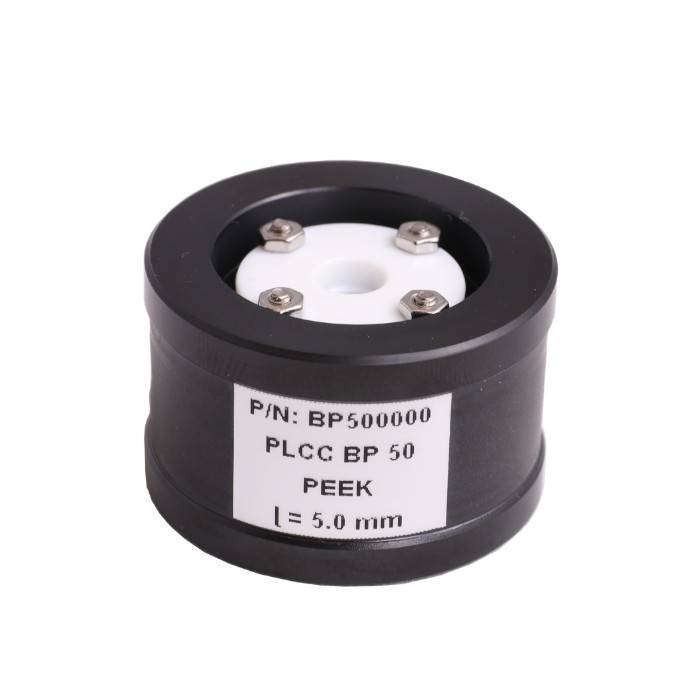

BP500000
|
Type
Flow-Cell BP50 Black PEEK 1/16" UNF10-32 (l=5mm)
|
Optical Path Length [mm]
5
|
Inside Volume (µl)
100
|
Max.flow-rate (ml/min)
500
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Quartz glass
|
Actions
|
|
|
PN

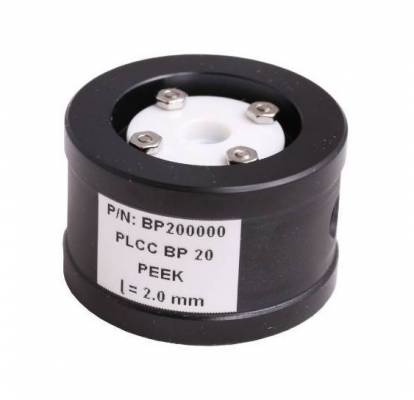

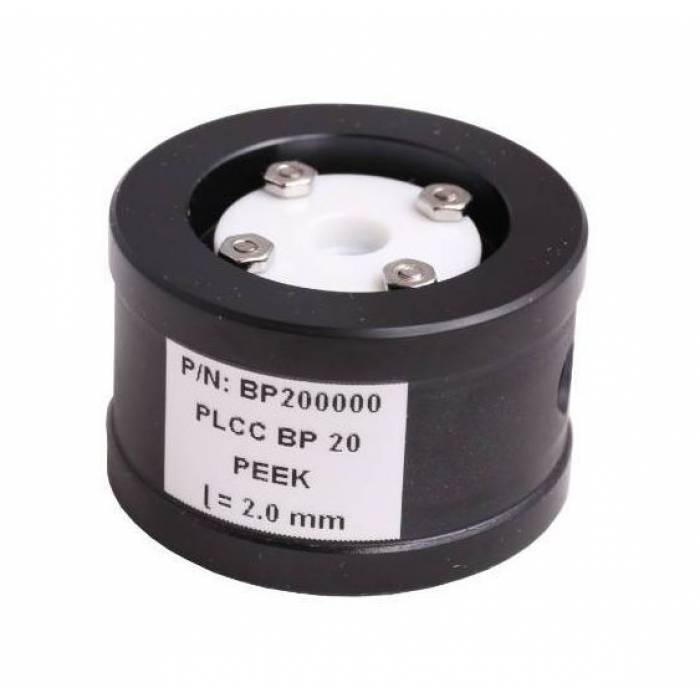

BP200000
|
Type
Flow-Cell BP20 Black PEEK 1/16" UNF10-32 (l=2mm)
|
Optical Path Length [mm]
2
|
Inside Volume (µl)
60
|
Max.flow-rate (ml/min)
500
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Quartz glass
|
Actions
|
- Description
Black PEEK Preparative flow-cells have a unique design with an optical length of 2 and 5 mm. It is designed for preparative or flash applications and it is possible to connect it using tubing with OD 1/16" and thread UNF10-32. Maximum flow rate is 500 ml/min.
These cells are intendthe newed for ECOM OEM detectors TOY18/20DAD I, U; BABY18DAD, and TOY18/20DAD V.
Advantages of theBlack PEEK Preparative flow-cells
• Unique Black PEEK are these cells used in special separation applications.
• Extended cell life – thanks to the new cell window design
• Increased temperature resistance range – now from -50 °C up to 100 °C
