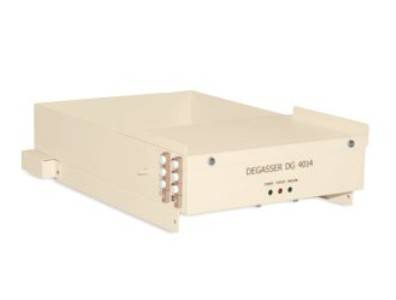

Box with Degasser DG 4014 four channels

On-line (continuous) mobile phase degasing up to 10 ml/min

Availability
This product cannot be purchased.
Manufacturer
ECOM spol. s r.o.
Part number
ZA100000

Box with Degasser DG 4014 is a container for solvent bottles with build-in a high-efficiency degasser  that removes dissolved gasses from HPLC solvents. Its unique design assures reliable continuous operation and the highest level of continuous performance available without the need for helium degassing. Up to four solvent lines may be degassed simultaneously by one unit. The extremely low internal volume of each Teflon AF® channel (480 microliters) offers very quick equilibration and very short startup times compared with PTFE degassing channels which have the same degassing efficiency.


This product has been designed for use with 220 mm wide ECOM units. Up to 4 mobile phase reservoirs LCT 02 may be put into the box.



Maximal flow rate (nominal) 10 mL/min.
Installation Over-Voltage Category II
Ambient Relative Humidity (RH) 20 to 80 % RH (without condensation)
Power requirement if using supplied AC Adapter 100 to 240 VAC (±10%), 1A, 50 to 60 Hz (±3 Hz)
Channels 1-4 independent
Pollution Degree 2
Altitude 0 to 2000 Meters
Operating Conditions Ambient Temperature 10 to 35 ºC
Degassing process Gas permeation through a fluoropolymer membrane
Wall Sockets 4 supplied with AC interchangeable North America/Japan, U.K., Continental Europe, Australia
Materials contacting solvents PEEK, Glass-filled PTFE, Teflon AF®
Degassing capacity ~2 ppm at 1 mL/min.
Dead volume of degasser channel ~480 microliters per channel for standard channel
Inside box dimensions (w x h x d) 59mm x 228mm x 217mm
Dimensions W x H x D 3.23" x 9" x 14.17"(82mm x 230mm x 360mm)
Weight 6 lb.(3 kg)
