COMPACT FLASH SYSTEM (300 ml/min, TOY18DAD800)

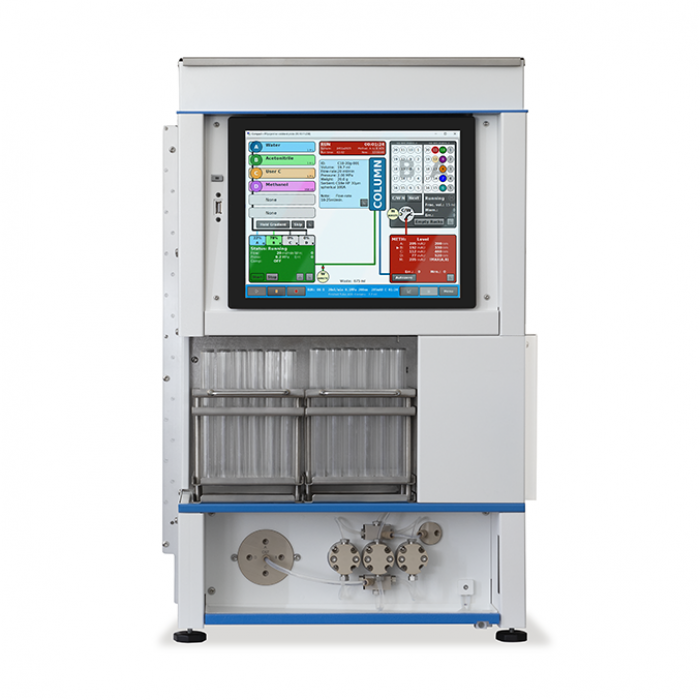

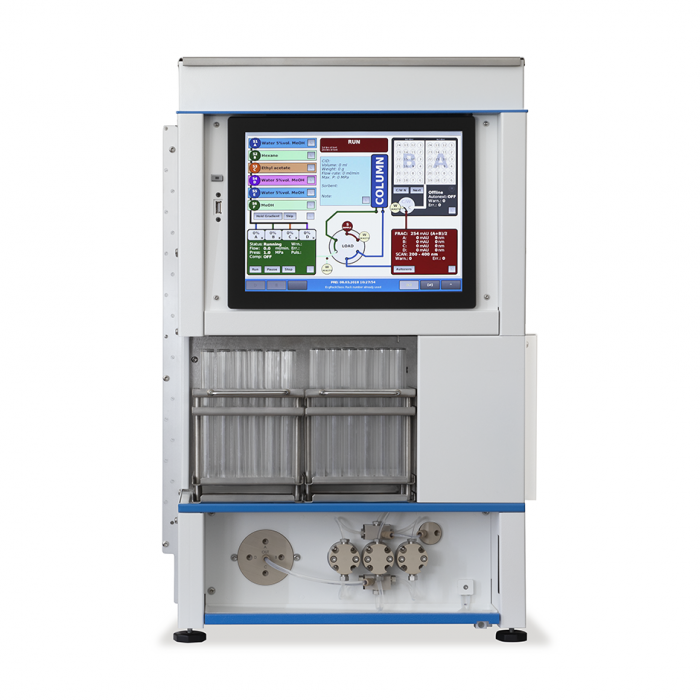

This highly effective compact flash system contains a UV-VIS DAD detector, flash gradient pump, and fraction collector. The detector enables absorbance measurement at four wavelengths simultaneously, or scanning of the entire spectrum. A built-in PC and touch screen controls the system. This modular solution can be configured according to customer needs.
- Description
TOY18DAD 800L Detector
It is a UV-VIS diode array detector, which allows measuring absorbance at four wavelengths in the range of 190‑800 nm simultaneously, just as scanning of the whole spectrum. Standardly, there is an assembled PFC cell with an optical path length of 0.3 mm, but other cells are available.
ECF2096 Fraction Collector

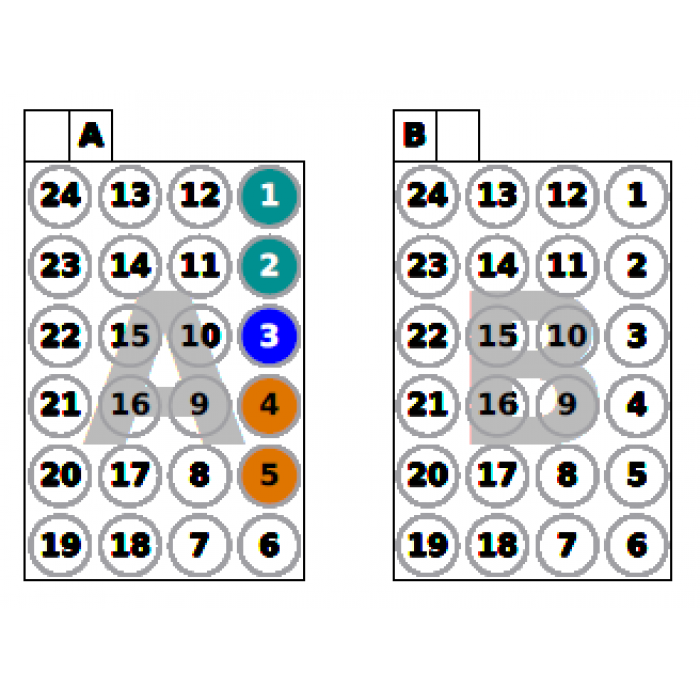

Fractions are collected according to the chosen method, which can be created comfortably using a touch screen. Racks for 8, 21, 40 tubes, 60 ml vials, or 12 funnels.
ECP2300 three-head low-pressure gradient pump
The basic version comes with a two-component low-pressure gradient, while the extended version comes with a four-component low-pressure gradient.
System PC information: An industrial PC with a 4-core processor is installed. OS Linux, a touch screen 12,1“ 1024 x 786

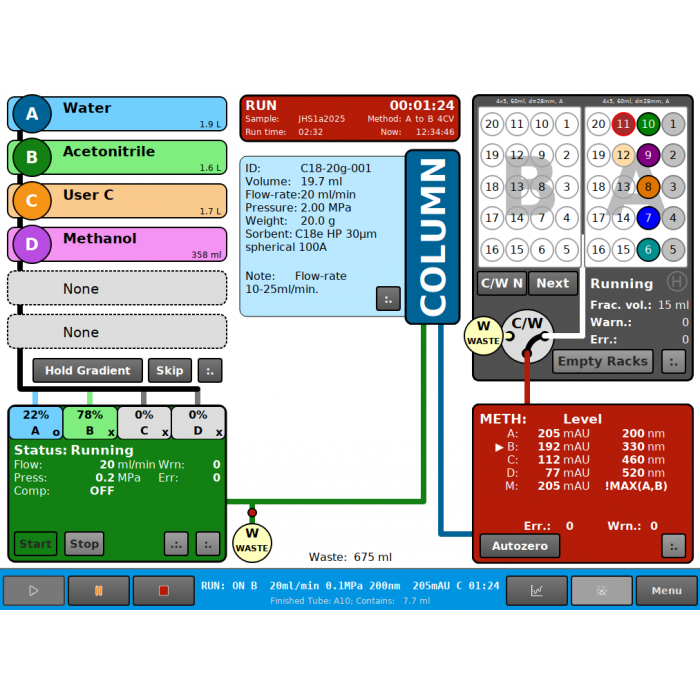

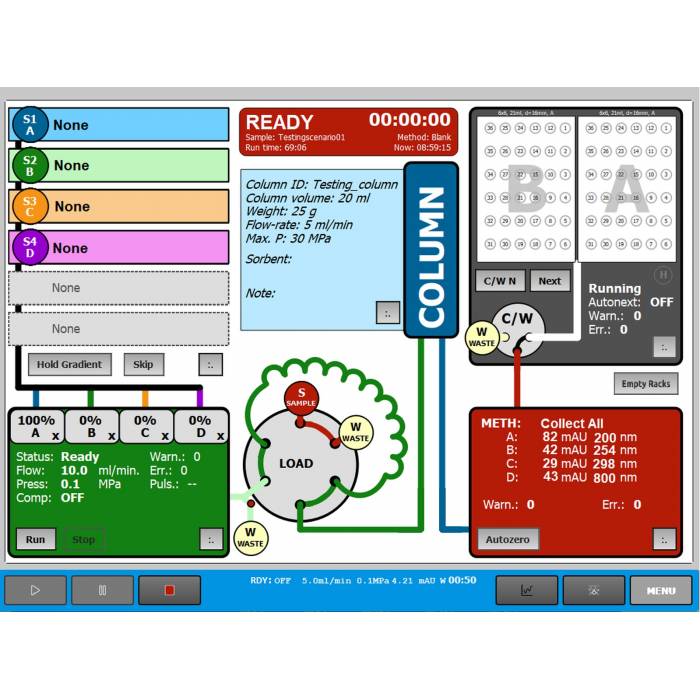

SW QUEEN controls: gradient, flow rate, wavelengths, fractions collection, etc.
Remote administration is available.

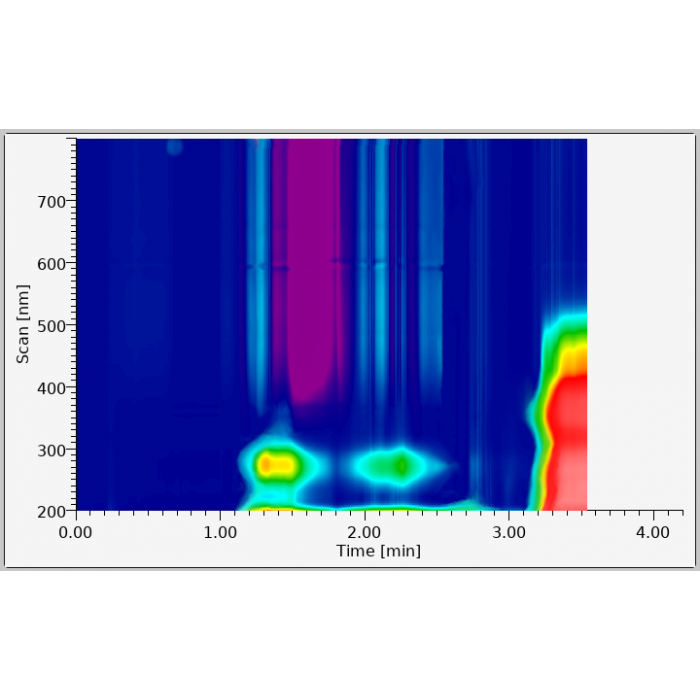

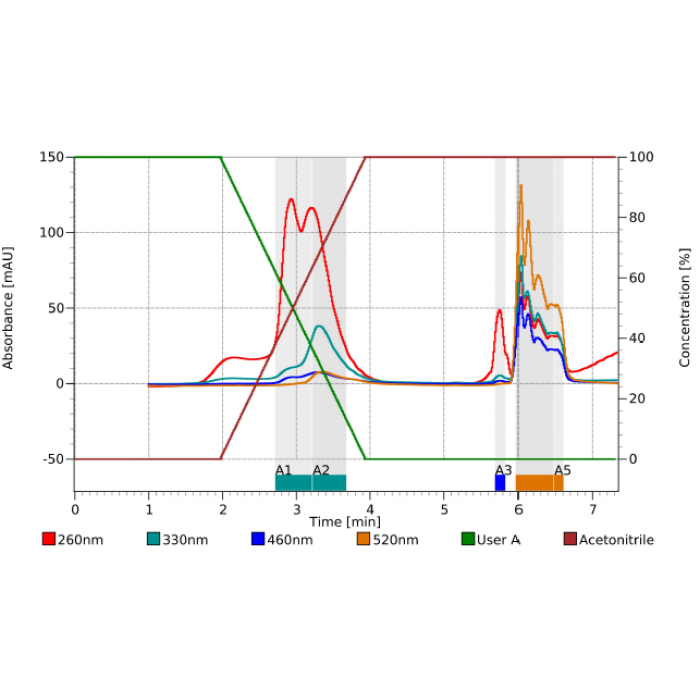

The system offers the possibility of measuring at four wavelengths simultaneously, or scanning through the entire spectrum. Furthermore, there is the option of displaying 3D data.
| COMPACT FLASH SYSTEM | |
| Pump | 0-300 ml/min / 5 MPa; PEEK heads |
| Low pressure gradient | Basic version: 2-components Extended version: 4-components |
| Detector | 190 – 800 nm, 4 channels + scanning |
| Fraction collector | 8, 21, 40, and 60 ml tubings |

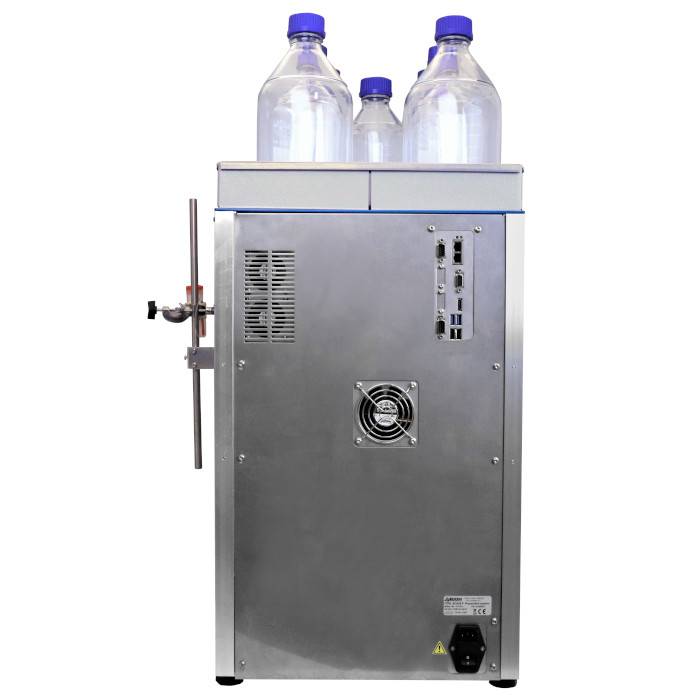

| Interface | 3xUSB, 2xLAN, RS232 |
| Power supply | 100 - 240 V AC |
| Power input | 490 W |
| Dimensions | 500 x 678 x 482 mm (20 x 27 x 19”) |
| Weight | 55 kg (121.30 lb) |
