COMPACT SEMI-PREPARATIVE SYSTEM (10 ml/min, TOY18DAD800)

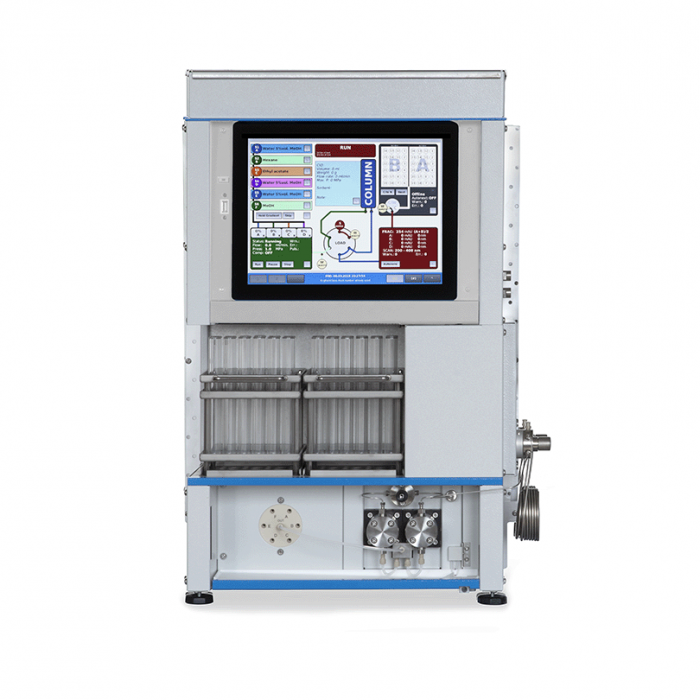

A highly effective Compact semi-preparative system containing UV-VIS DAD detector, analytical gradient pump with degasser, automatic inject valve and fraction collector. The detector allows absorbance measuring at four wavelengths at the same time or scanning through entire spectrum.
- Description
- Files to download 2
The system is controlled by a built-in PC and touchscreen.
A modular solution allows configuring the unit according to customer needs. This system contains a detector with a wavelength range of 200 – 800 nm, a pump with a flow rate up to 10 ml/min and a fraction collector.
Main parts
TOY18DAD800L DETECTOR
It is a UV-VIS diode array detector, which allows measuring the absorbance of four wavelengths in a range of 200–800 nm simultaneously in one cell just as scanning of whole spectra. Standardly is assembled with preparative cell PLCC07L, but other cells are available.
ECF2096 FRACTION COLLECTOR
Fractions are collected according to chosen method, which is simply created using a touch screen. Racks for 8, 21,40 ml tubes, 60 ml vials or 12 funnels, 30 mm.
AUTOMATIC INJECT VALVE
The valve is driven by a step motor and it is automatically switched by software. The system also allows manual sample injection by opening the column.
SYSTEM PC INFO
Installed industrial PC with Intel Atom 4 core processor. OS Linux, Touch screen 12,1“ 1024 x 786, SW QUEEN controls: gradient, flow rate, wavelengths, fractions collection etc. Remote administration is available. Possibility of measuring at four wavelengths at the same time or scanning through entire spectra. Furthermore, the possibility of displaying 3D data.
ECP2010 ANALYTICAL GRADIENT PUMP
Modified for the compact system, analytical gradient pump with degasser and with flow rate up to 10 ml/min (40 MPa, 5082 PSI). Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions. Four gradient valves allow changing mobile phases without bottles alternation.
| COMPACT PREPARATIVE SYSTEM | |
| Interface | 3xUSB, 2xLAN, RS232 |
| Power supply | 100 - 240 V AC |
| Power input | 400 W |
| Dimensions (W x H x D) | 500 x 678 x 482 mm (19.69 x 26.69 x 18.98") |
| Weight | 55 kg (121.30 lb) |
| Detector | |
| Wavelength range | 200 - 800 nm (256 elements on CCD) |
| Number of channels (Signals) | 4 |
| Scan | 200 - 800 nm,up to 20 Hz, step 1 nm |
| Typical spectral half-width | 10 mn |
| Accuracy of adjustment / Reproducibility | ± 1 nm / ±0.5 nm |
| Noise level at test cell (254 nm, TC 0.75s) | ± 5 x 10-5 AU |
| Drift at test cell (254 nm after 1 h) | 1 x 10-3 AU/hr |
| Materials in contact with mobile phase | FEP; fused silica, stainless steel, PEEK |
| Time constant (T63) | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Fraction collector | |
| Available racks (two racks per unit) | EC08 48 tubes of 8 ml |
| EC21 36 tubes of 21 ml | |
| EC40 24 tubes of 40 ml | |
| EC60 20 vials of 60 ml | |
| F12A 12 funnels, 30 mm | |
| Maximum flow rate for tubes 8 ml | max. 50 ml/min |
| Maximum flow rate for tubes 21, 40 ml | max. 300 ml/min |
| Maximum flow rate for vials 60 ml | max. 300 ml/min |
| Maximum flow rate for funnels | max. 500 ml/min |
| Wetted materials | FEP, Tefzel®, PPS, KEL-F, PTFE, PEEK, SS 316, SIMAX glass |
| Input tubing | OD 1/8“ x ID 1/16“ FEP |
| Pump | |
| Flow rate | 0.02 - 10.00 ml/min |
| Maximum operating pressure | 40 MPa (5082 PSI) |
| Repeatability of flow rate adjusting | ± 0.5 % |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | stainless steel, sapphire, KEL-F, seals* |
| Output capillary outer diameter | 1/16” |
| Input tubing outer diameter | 1/8” |
| Gradient valves control module - OPTIONALLY | Up to four valves |
| Filename | Type |
|---|---|
| Info-ECS08P_Compact_Semipreparative_system-en-03.pdf | pdf (240,35 KB) |
| Info-Piston_Seal_Materials-en-01.pdf | pdf (134,34 KB) |
