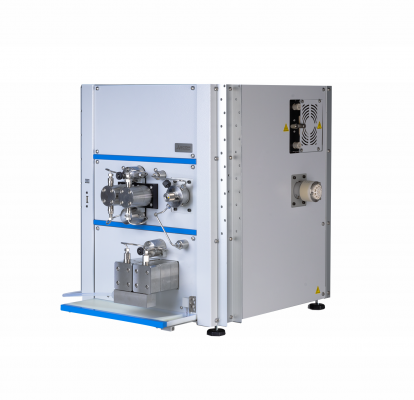

PREPBOX Chromatography Separation Systems
PREPBOX is a compact alternative to modular preparative systems. It is assembled according to the customer's wishes. It is used for high-capacity systems or with centrifugal chromatography systems like in pharmaceutical purification of cannabis extracts (CBD, CBN, CBG, CBC, THC...)
| Image | PN | Name | Gradient pump [ml/min] | Number of gradient valves | Injection pump [ml/min] | Maximal pressure [MPa / PSI] | UV-VIS detector range [nm] | Positions of fraction valve | Request quote |
|---|---|---|---|---|---|---|---|---|---|
|
|
PN
SCKA000X
|
Name

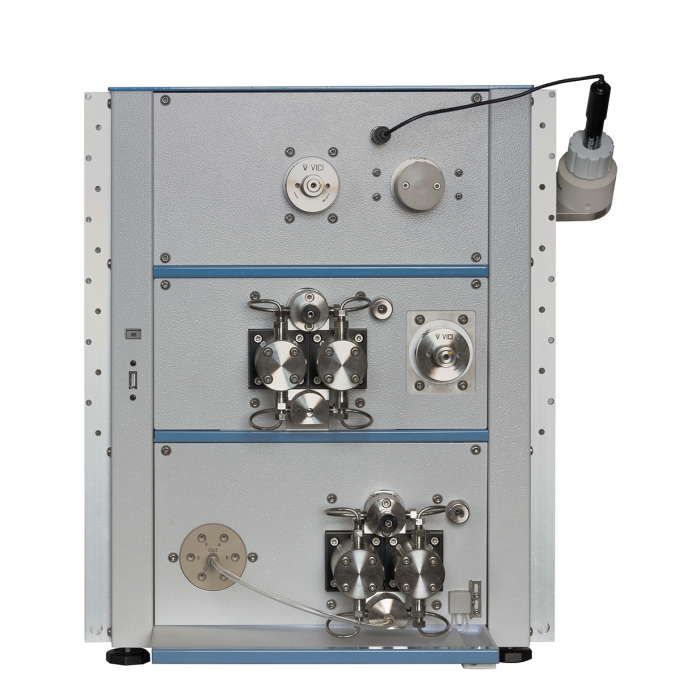

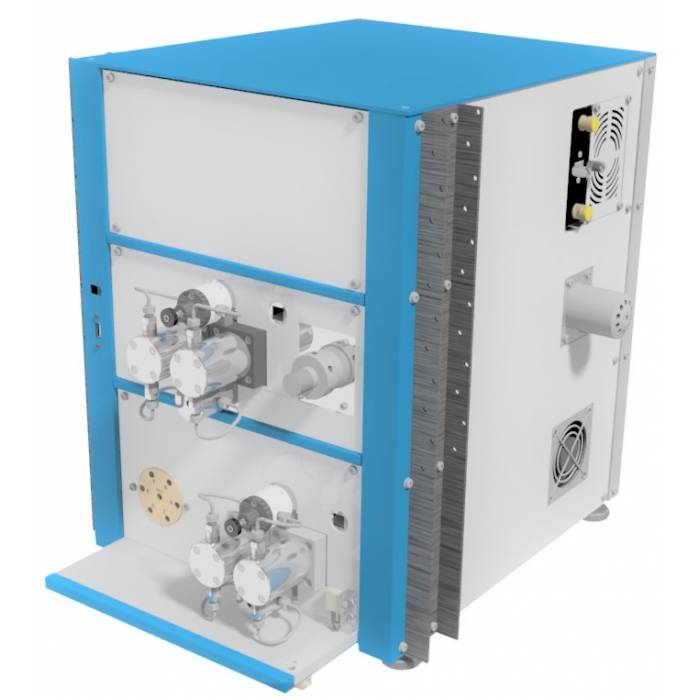

PREPBOX A338E Chromatography Separation System
|
Gradient pump [ml/min]
1 - 300
|
Number of gradient valves
6
|
Injection pump [ml/min]
1 - 300
|
Maximal pressure [MPa / PSI]
15 / 2175
|
UV-VIS detector range [nm]
200 - 800
|
Positions of fraction valve
1 x 10
|
Actions
|
|
|
PN
SCK0000X
|
Name
PREPBOX A3L8E Chromatography Separation System
|
Gradient pump [ml/min]
1000
|
Number of gradient valves
4
|
Injection pump [ml/min]
300
|
Maximal pressure [MPa / PSI]
15 / 2175
|
UV-VIS detector range [nm]
200 - 800
|
Positions of fraction valve
1 x 10
|
Actions
|
|
|
PN
SCKAS00X
|
Name
PREPBOX A338E SPECIAL System with CDPH detector and column switching valve
|
Gradient pump [ml/min]
1 - 300
|
Number of gradient valves
6
|
Injection pump [ml/min]
1 - 300
|
Maximal pressure [MPa / PSI]
15 / 2175
|
UV-VIS detector range [nm]
200 - 400
|
Positions of fraction valve
1 x 10
|
Actions
|
- Description
- Parameters
- Files to download 3

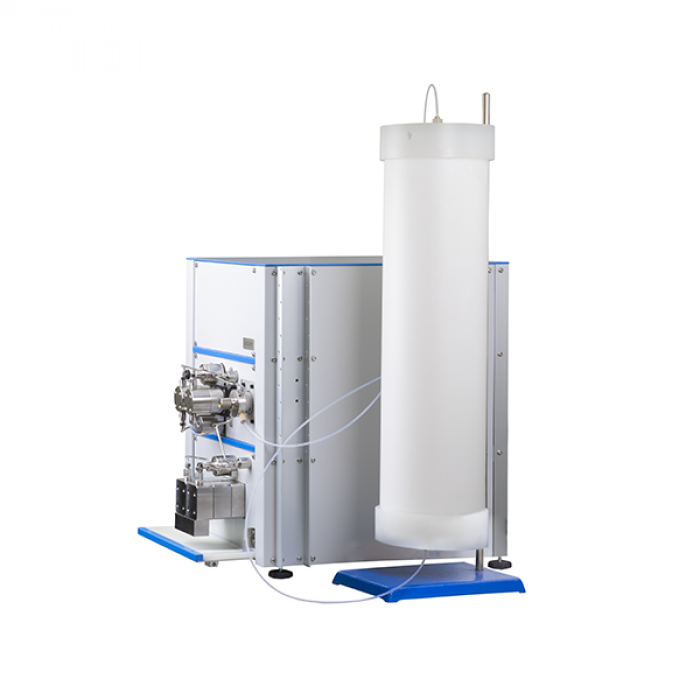

Complete preparative modular system with one basic gradient pump and optionally secondary pump for repetitive sampling or with injection valve. Also switching valve for CCC applications. PDA four-channel detector up to 800 nm. It is assembled according to the customer's wishes. It is used for high-capacity systems or with centrifugal chromatography systems like in pharmaceutical purification of cannabis extracts (CBD, CBN, CBG, CBC, THC...).
ECOMAC SW is installed on the internal PC which controls the system. Fractions are collected using a 10-position valve.
Operating system: It is necessary to purchase an operation system for the PREPBOX - in most cases, we recommend Windows OS (P/N: ABB90000) or Linux (on request).
Chromatography software: The system is supported by Clarity software.
Accessories: As useful accessories, it is also possible to purchase a wireless mouse, a keyboard set (P/N: EPC-0028), and a computer monitor (P/N: EPC-0027).
TOY18DAD 800L Detector
It is a UV-VIS diode array detector, which allows measuring the absorbance of four wavelengths in the range of 200-800 nm simultaneously in one cell just as scanning of whole spectra.
PUMPS for SCK0000X System:
ECP201L Preparative Gradient Pump
ECP201L is a powerful pump suited for preparative liquid chromatography with very high pressure of up to 15 MPa at a flow rate of 1000 ml/min. The advantage of this pump is that it has a very stable run even at low flow rates. This new sophisticated unit allows for achieving a precise low-pressure gradient, i.e. gradual changes of solvent composition by mixing up to four liquids at the pump entry.
ECP2300 Preparative Pump for sample injecting
ECP2300 is a preparative HPLC pump suited for preparative applications in liquid chromatography with a pressure of up to 15 MPa at a flow rate of 300 ml/min.
PUMPS for SCKA000X System:
ECP2300 Preparative Gradient Pump
ECP2300 is a powerful pump suited for preparative liquid chromatography with very high pressure of up to 15 MPa at a flow rate of 300 ml/min. The advantage of this pump is that it has a very stable run even at low flow rates. This new sophisticated unit allows for achieving a precise low-pressure gradient, i.e. gradual changes of solvent composition by mixing up to four liquids from six inlet ports at the pump entry.
ECP2300 Preparative Pump for sample injecting
ECP2300 is a preparative HPLC pump suited for preparative applications in liquid chromatography with a pressure of up to 15 MPa at a flow rate of 300 ml/min.

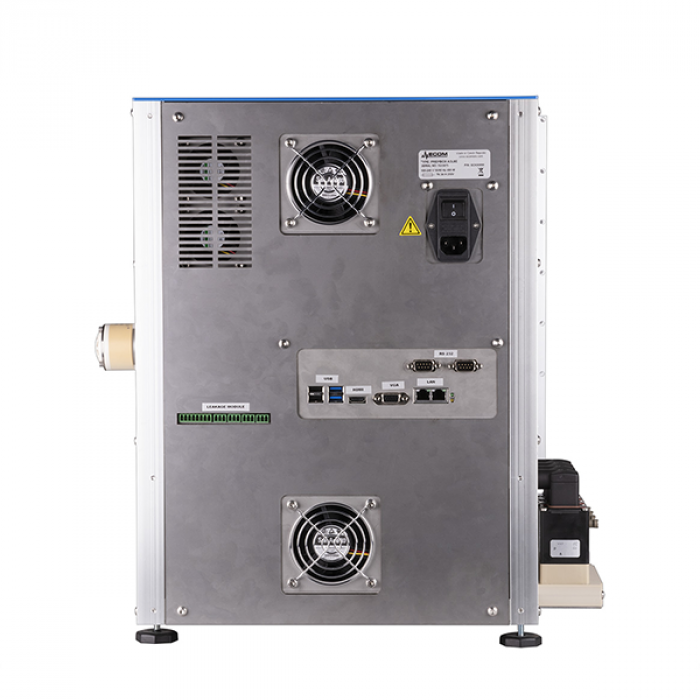

| Interface | 5x USB, HDMI, 2X RS232, LAN, VGA |
|---|---|
| Power supply | 100 - 240 V AC |
| Power input | 490 W |
| Dimensions W x H x D | 405x490x525 mm (15.94x19.29x20.67 in) |
| Weight | 55 kg |
| Filename | Type |
|---|---|
| Manual-PREPBOX-A3xxx-en | pdf (3,63 MB) |
| Info-Piston_Seal_Materials-en | pdf (134,34 KB) |
| Info-PREPBOX_A3L8E_A338E_Chromatography_separation_systems-en | pdf (762,77 KB) |
