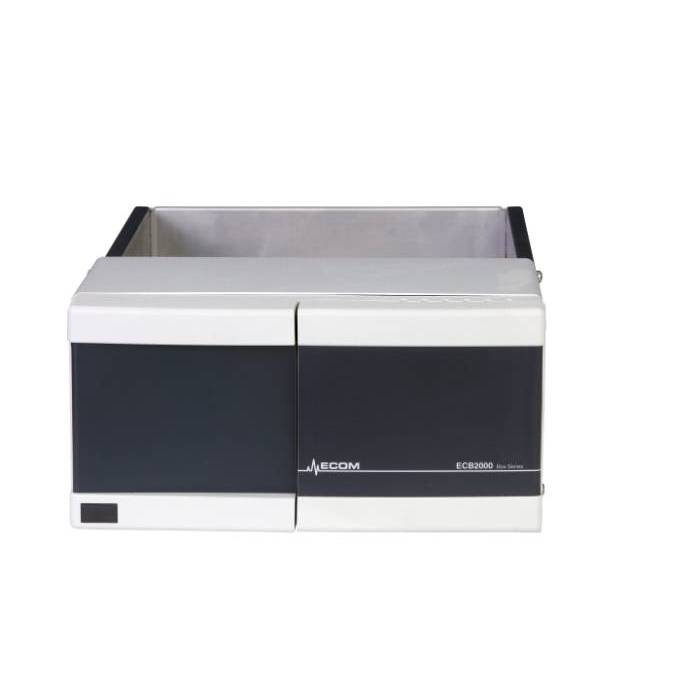

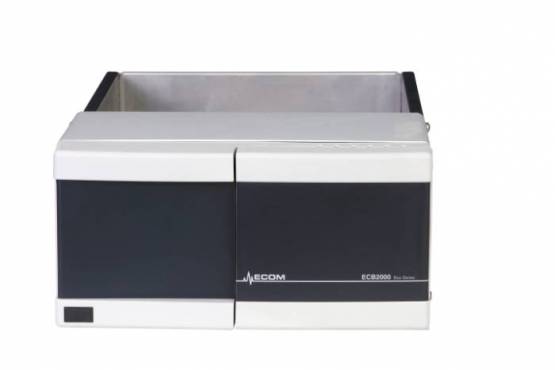

ECB2007 Anal./semiprep. grad. box without degasser
A box for handling liquids with a four-way gradient valve.
- Description
- Parameters
- Files to download 4

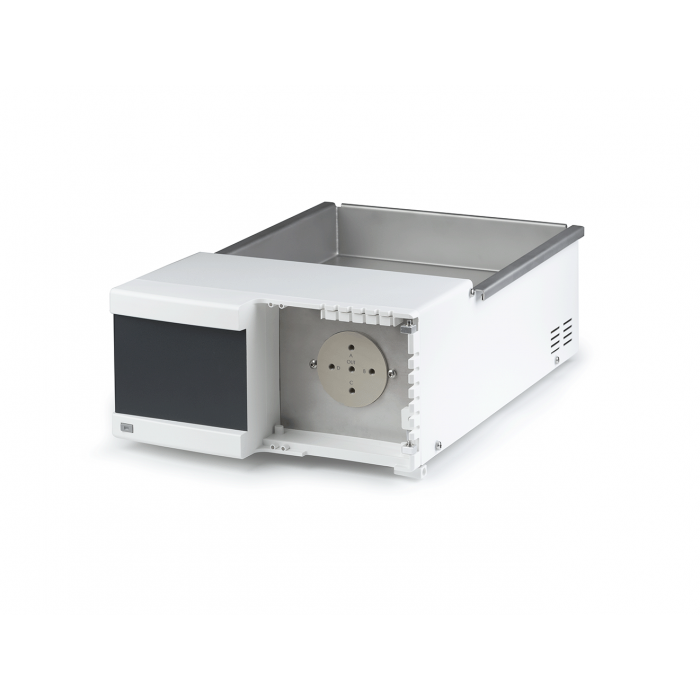

The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles and a four-way gradient valve.
New improved valve design reduces the formation of bubbles.
Innovated sophisticated pump electronics enable precise low-pressure gradients, i.e., gradual changes in the composition of the mobile phase by mixing up to four liquids at the pump‘s entry. It is also possible to predefine the composition percentage when using the pump in isocratic mode. The gradient profile can be defined either through the computer or manually using the display and keypad.
Up to three 2 L and one 1 L mobile phase reservoirs can be placed in the box.
| Orifice | 0.063“ (1.6 mm) |
|---|---|
| Inside volume of valve for each channel | 262 ul |
| Wetted materials | PEEK, FFKM, SSA316 |
| Connecting thread | 1/4"-28 flat bottom |
| Inside box dimensions (w x h x d) | 267 x 56 x 305 mm |
| Dimensions W x H x D | 280 x 135 x 498 mm |
| Weight | 5.7 kg (12.6 lb) |
| Operating pressure | -0.1 MPa up to 0.2 MPa (-1 bar up to 2 bar; -14.5 psi up to 29 psi) |
| Power supply | Powered from the pump |
| Filename | Type |
|---|---|
| Info-ECB2007_gradient-cz-03.pdf | pdf (128,24 KB) |
| Info-ECB2007_gradient-en-04.pdf | pdf (128,99 KB) |
| Manual-ECB2005_7_ECB2005PC_7PC-en | pdf (1,06 MB) |
| Manual-ECB2005_7_ECB2005PC_7PC-cz | pdf (1008,41 KB) |
