ECB2007PC Anal./semiprep. gradient box with PC
A box for handling liquids with a four-way gradient valve.
- Description
- Parameters
- Files to download 3

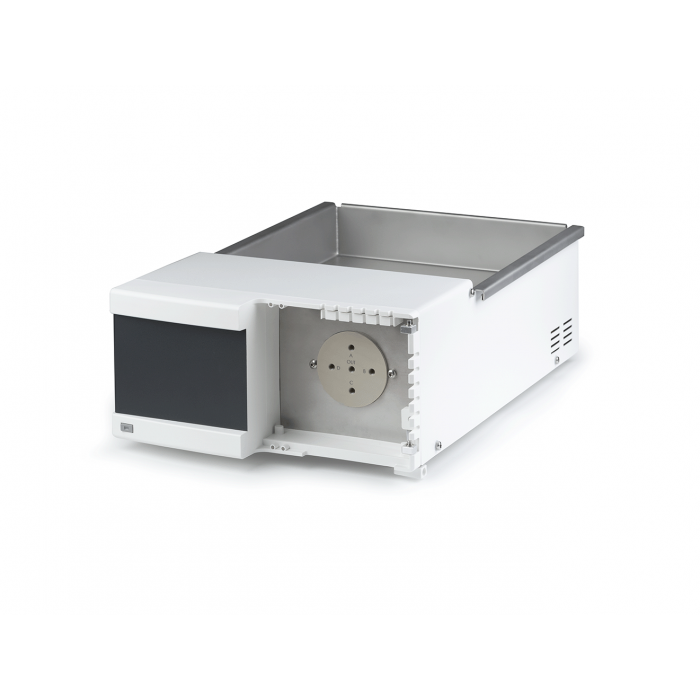

The ECB2007PC gradient box is designed for the use with ECOM gradient systems for liquid handling. It accommodates a container for solvent bottles and a four-way gradient valve. An industrial PC board is assembled inside the box. The entire system is then more space-efficient in the laboratory. This solution enables the installation of an operating system (Windows or Linux) and chromatography software (ECOMAC or Clarity).
The four-way gradient valve is controlled from the pump (ECP2010, ECP2010H, ECP2050, or ECP2100). The ECB2007(PC) gradient boxes must be ordered with the pump. New improved valve design reduces the formation of bubbles.
Innovated sophisticated pump electronics enable precise low-pressure gradients, i.e., gradual changes in the composition of the mobile phase by mixing up to four liquids at the pump‘s entry. It is also possible to predefine the composition percentage when using the pump in isocratic mode. The gradient profile can be defined either through the computer or manually using the display and keypad.
Up to three 2 L and one 1 L mobile phase reservoirs can be placed in the box.
Orifice | 0.063“ (1.6 mm) |
---|---|
Inside volume of valve for each channel | 262 ul |
Wetted materials | FEP, PEEK, Kalrez® |
Connecting thread | 1/4"-28 flat bottom |
Inside box dimensions (w x h x d) | 267 x 56 x 305 mm (10.5” x 2.2” x 12”) |
Dimensions W x H x D | 280 x 135 x 498 mm (11” x 5.3” x 18.9”) |
Weight | 7 kg (15.4 lb) |
Operating pressure | 0.1 MPa up to 0.2 MPa (-1 bar up to 2 bar; -14.5 psi up to 29 psi) |
Power supply | 100-240V 50/60Hz 40VA |
Filename | Type |
---|---|
Info-ECB2007PC_gradient-en-04.pdf | pdf (133,68 KB) |
Manual-ECB2005_7_ECB2005PC_7PC-cz | pdf (1,06 MB) |
Manual-ECB2005_7_ECB2005PC_7PC-cz | pdf (1008,41 KB) |
