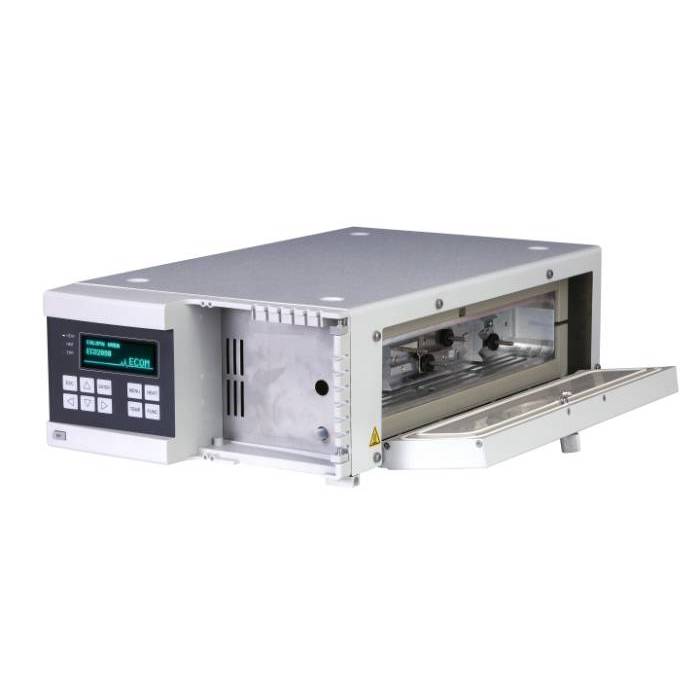

ECO2080 Column Oven
Column Oven equipped with Peltier cooler allowing temperature stalilisation in rance 0 - 80°C.
Related variants
- Description
- Parameters
- Files to download 4
Unit has a big column space which can accommodate up to 3 columns with a length up to 25 cm.
Unit is controlled by keypad, RS232 or Ethernet(LAN) interface. Precise temperature control enhances separation and reproducibility and improves the quality of analysis. With its built-in leak alarm it is a safe, accurate and flexible choice.
Device is supported by ECOMAC and Clarity software.
Precolumn heating exchangers available (ask for specification, have to be ordered separately).
Communication | RS232,Ethernet (LAN) |
---|---|
Operating temperature range | 0-80 °C |
Temperature stability | ± 0,2 °C |
Temperature reproducibility | ± 0,2 °C |
Display, keypad | VFD 140x32 pixels, 10 pushbuttons |
Temperature accuracy | ± 2 °C |
Power supply | 100-240V 50/60Hz 250VA |
Heated/cooled space inside dimensions (w x h x d) | 328 x 54 x 42 mm (12.91 x 2.13 x 1.65 in) |
Dimensions W x H x D | 280 x 135 x 498 mm (11.02 x 5.32 x 19.60) |
Weight | 14 kg (30.87 lb) |
Filename | Type |
---|---|
Manual-ECO2080_ECO2099-cz-04.pdf | pdf (1,18 MB) |
Manual-ECO2080_ECO2099-en-04.pdf | pdf (1,13 MB) |
Info-ECO2080_ECO2099_column_oven-cz-03.pdf | pdf (191,48 KB) |
Info-ECO2080_ECO2099_column_oven-en-03.pdf | pdf (192,17 KB) |
