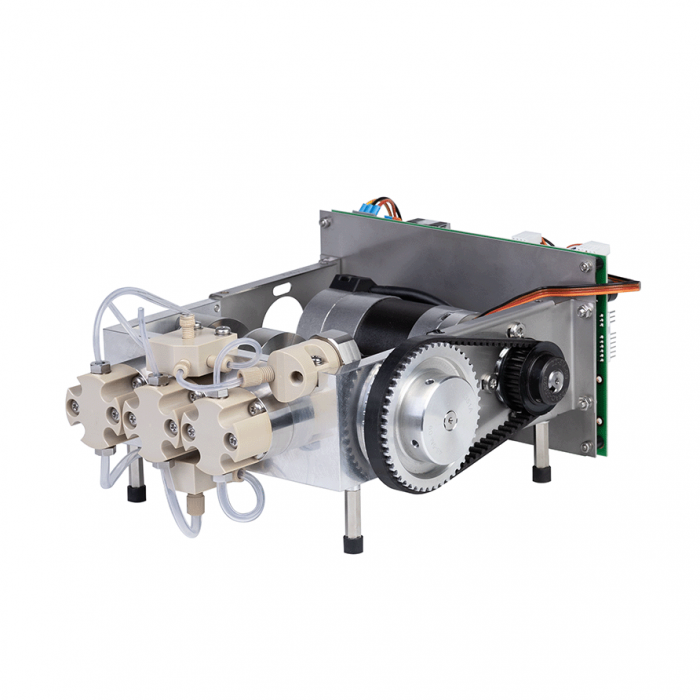

ECP2303 OEM Low-pressure preparative pump (300 ml/min; 5 MPa)
The ECP2303 built-in preparative pump, with a pressure of 5 MPa at a flow rate up to 300 ml/min.
- Description
- Parameters
- Files to download 2

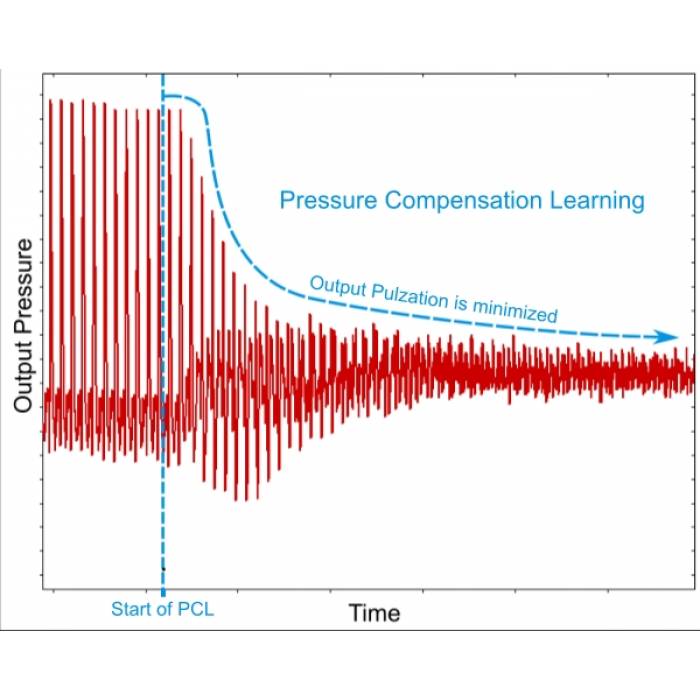

The ECP2303 built-in preparative pump, with a pressure of 5 MPa at a flow rate up to 300 ml/min. It is equipped with three pistons, each with a diameter of 3/8“. Thanks to this solution, the pump has low pulsation.
The pump is equipped with a pressure sensor that transmits the current pressure and allows you to set the lower and upper pressure limits.
Applications: The pump is suited for flash and preparative chromatographic applications.
Optionally, this pump can be used in low-pressure gradient mode, with the addition of two or four gradient valves, to achieve a precise low-pressure gradient, i.e. gradual changes in the solvent composition by mixing up to four liquids at the pump inlet. The gradient profile can be defined using a computer.
Control: The pump is controlled via PC, using RS232, and optionally using LAN, USB or I/O.
Software: The pump is supported with software ECOMAC and Clarity.
| Flow rate | 1– 300 ml/min |
|---|---|
| Maximum operating pressure | 5 MPa (175 PSI) up to 300 ml/min |
| Flow rate setting | 1 ml/min steps |
| Repeatability of flow rate adjusting | ± 1 % |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | PEEK, FEP, ceramic and GFP seals |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 V |
| Power input | 100 VA |
| Dimensions W x H x D | 210 x 150 x 220 mm (8.27 x 5.90 x 8.66 in) |
| Weight | 4.5 kg (9.92 lb) |
| Output capillary outer diameter | 1/8" |
| Data input | Input tubing outer diameter - 3/16” |
| Filename | Type |
|---|---|
| Info-ECP2303_pump-en | pdf (262,3 KB) |
| Info-Piston_Seal_Materials-en | pdf (554,72 KB) |
