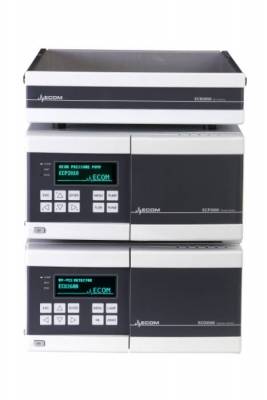

ECS03 Isocratic Analytical System
10ml/min
40MPa
190-600
Highly effective HPLC system containing a UV-VIS detector, an analytical pump, and a box for mobile phase bottles. The detector with continuously variable wavelengths of 190-600 nm and a very low noise level offers high-speed sampling up to 100 Hz.
- Description
- Files to download 3
Communication of all units is through RS232 or Ethernet(LAN). An additional PC A/D converter card is not required for this system.
The system contains a manual injector and Clarity software. All units are supported in Clarity software from installation.
A wireless mouse and keyboard set (P/N: EPC-0028), PC (P/N: EPC-0026) and a computer monitor (P/N: EPC-0027) can be purchased with the system.
Main parts
ECD2600 UV-VIS DETECTOR
Detector with a continuously variable wavelength in the range of 190-600 nm and a noise level ±3·10-6 AU. The unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.
ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. The flow rate range is 0.02-10.00 ml/min and the pressure limit at 40 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions.
ECB2006 BOX FOR MOBILE PHASE BOTTLES
The box is suited for secure mobile phase bottles installation onto isocratic systems
CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity chromatography software, which is also a part of delivery. Clarity software complies with CFR21GLP requirements.
SYSTEM CONTAINS
| PCS | Description | P/N |
| 1 | ECD2600 UV-VIS Detector | ADB0000X |
| 1 | ECP2010 Analytical HPLC pump | ACA0000X |
| 1 | ECB2006 Box for MOBILE Phase Bottles | ABC0000X |
| 1 | Clarity – Station for 1 instrument | AP000C50 |
| 1 | Clarity module for HPLC control | AP000A24 |
| 1 | Analytical/semipreparative injection valve 1/16" with 20ul sample loop and connector | AVE02006 |
| 1 | Accessories for analyt. system series 2000 | ASA00180 |
Note: Column and computer are not included. PC system has to be equipped for handling 3 serial RS232 or 1 Ethernet port at least. Check also Clarity software requirements
| Filename | Type |
|---|---|
| Info-ECS03_isocratic_analytical-cz-02.pdf | pdf (211,71 KB) |
| Info-ECS03_isocratic_analytical-en-02.pdf | pdf (187,2 KB) |
| Info-Piston_Seal_Materials-en-01.pdf | pdf (134,34 KB) |
