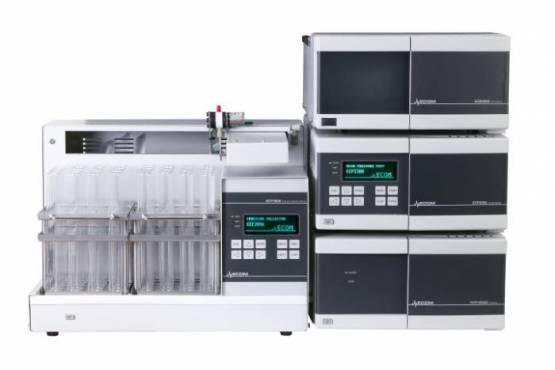

ECS23PC Quaternary Preparative Gradient System with Fraction Collector
4 channel
200-600
300ml/min
15MPa
High effective preparative system containing UV-VIS DAD detector, preparative pump, gradient box with PC and fraction collector. Detector allows measuring at four wavelengths in the same time or an informative scan.
- Description
- Files to download 1
Communication is through RS232 or Ethernet (LAN). Additional PC A/D converter card is not required for this system.System contains manual injector and ECOMAC software which include drivers for all ECOM units.
It is necessary to purchase an OS for the system - in most cases we recommend OEM Windows OS (P/N: ABB90000) or Linux (on request).
It is also possible to purchase a wireless mouse and keyboard set (P/N: EPC-0028) and a computer monitor (P/N: EPC-0027).
It is also possible to purchase a wireless mouse and keyboard set (P/N: EPC-0028) and a computer monitor (P/N: EPC-0027).
Main parts
TOY18DAD H 600 DETECTOR
is an UV-VIS diode array detector, which allows measuring absorbance of four wavelengths in range of 200 – 600 nm simultaneously in one cell just as visualization of whole spectra. It is possible to use the detector in flash and preparative applications. Standardly is assembled preparative cell PLCC 15 but other cells are available.
ECP2300 PREPARATIVE PUMP
This isocratic pump works with Gradient Box ECB2007PC as a quaternary gradient pump. Flow rate range is 0.1-300 ml/min and pressure limit at 15 MPa. Unit software includes new learning algorithm for pulsation suppression and many testing and diagnostic functions.
ECB2005PC GRADIENT BOX WITH PC, WITHOUT DEGASSER
Box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles and four-way
gradient valve. Four-way gradient valve is controlled from the pump ECP2300. In this box is assembled an industrial PC board. This solution allows installation OS (Windows or Linux) and chromatography SW ECOMAC or Clarity.
ECF2096 FRACTION COLLECTOR
Fractions collected according to chosen method which can be created manually by keyboard, just as using ECOMAC software. Analog input allows collecting based on detector signal. Racks for 9, 21, 40 ml tubes.
ECOMAC CHROMATOGRAPHY SOFTWARE
This system is fully controlled by ECOMAC software, which is also a part of delivery. It allows all units controlling, gradient creating and fraction collecting.
SYSTEM CONTAINS
Pcs | Description | P/N |
1 | TOY18DAD H 600 Four Channel Detector | TOYH120X |
1 | ECB2005PC Gradient Box with PC, without Degasser | ABBPC00X |
1 | ECP2300 Preparative Pump | ACE0000X |
1 | ECOMAC software | SA100000 |
1 | ECF2096 Fraction collector | AFA0000X |
1 | Preparative injection valve 1/8”; 2ml loop | SY2032022 |
1 | Accessories for prep. system series 2000 | ASP00180 |
Note: System can be equipped with detectors with different wavelengths range and pumps with different flow rate from ECOM production.
Filename | Type |
---|---|
Info-ECS23PC_gradient_preparative-en-00.pdf | pdf (254,14 KB) |
