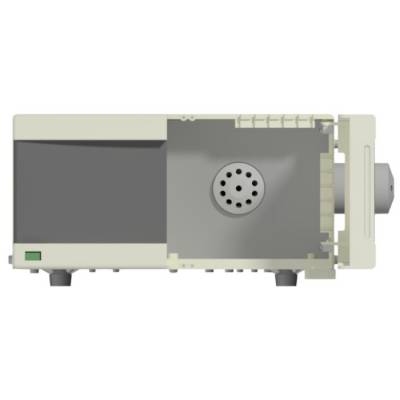

ECV2014 Fraction Collector with 10 and 4 position valves
- Files to download 1
ECV2014 is a fraction collectorfor the automation of flash and preparative purification. It collects fractions according to chosen method which can be created by using ECOMAC software.

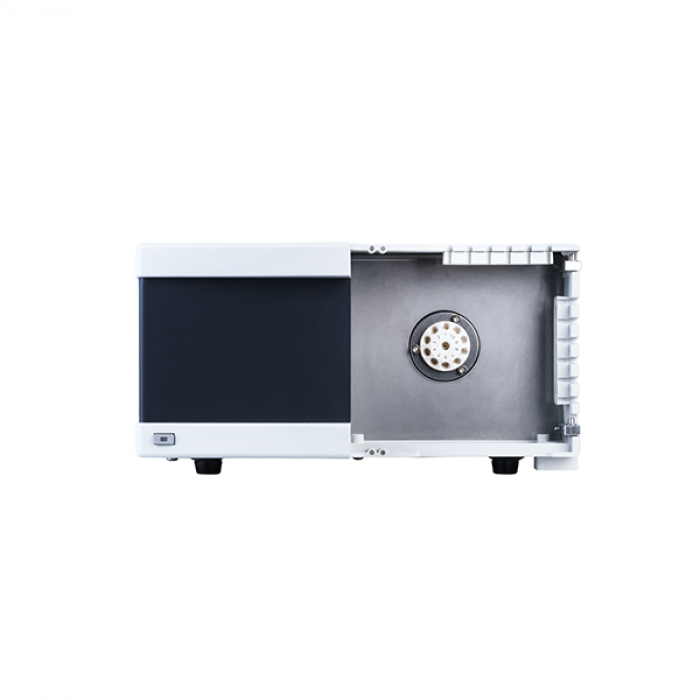

The fraction collector is equipped with 2 selector rotary valves - with 10 and 4 positions. A single stream is directed to the selected outlet. It is gradually collected liquid outflowing from the detector of the liquid chromatography system. One of them is used as waste and others are used for collecting samples.
Smart ECOMAC Functionality
The ECOMAC software can stop the pumping of all connected pumps while switching valve positions.
One possible way to use a 4-position valve is to connect it to the pump and then inject the samples/switch the solvents.
Fraction collector operating modes:
- Collect all
- Level (different up and down value)
- Slope (different up and down value)
- Time shift of all collection functions.
Fraction collector functions main features:
- Unit simplicity
- Easy programming of fraction collection
- Compact size fits in most fume hoods
|Wetted materials||FEP, PEEK, CTFE, PPS, Valcon E2|
|Thread for tubing connection||1/4“-28|
|Connection tubing OD||1/8“|
|Maximum operating pressure||1.72 MPa (250 psi)|
|Maximal flow rate||500 ml/min|
|Orifice||1.5 mm (0.060")|
|Power supply||100-240 V 50/60 Hz|
|Power consumption||110 VA|
|Dimensions W x H x D||330 x 149 x 498 mm (12.99 x 5.87 x 19.61 in)|
|Weight||7 kg (2.20 lb)|
|Info-ECV2014_Fraction_Collector-en-00.pdf||pdf (151,06 KB)|
