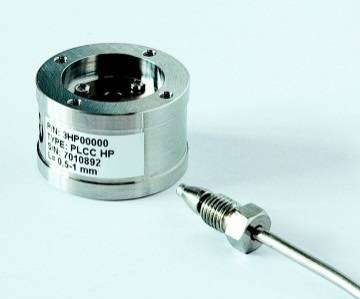

For applications requiring high pressure resistance ECOM developed a special flow cell with optical path 0.5 up to 1.0 mm. Flow cell interna volume is 20ul and maximal flow rate 500 ml/min.
This flow cell is particularly meant for SCFE (Supercritical fluid extraction), or for preparative and flash applications. Capillaries with OD 1/8" can be connected using screw with thread 5/16"-24 and ferrule.
|Volume/optical path (adjustable)||20 µl/0.5-1.0 mm|
|Material||stainless steel, fused silica, PTFE|
|Outer diameter of capillary||1/8"|
|Maximal flow rate||500 ml/min.|
|Dimensions (diameter x height)||36 x 23 mm|
