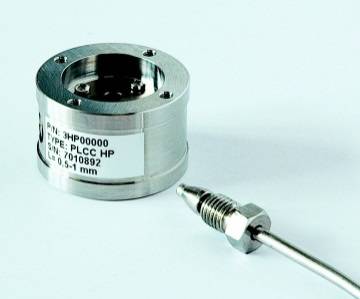

Flow cell preparative high pressure PLCC HPU l=0.5-1, 1/16", UNF 10-32
For detectors Flash, TOYDAD and TOYFIX.
- Description
- Parameters
For applications requiring high pressure resistance ECOM developed a special flow cell with optical path 0.5 up to 1.0 mm. Flow cell interna volume is 20ul and maximal flow rate 200 ml/min.For applications requiring high pressure resistance ECOM developed a special flow cell with optical path 0.5 up to 1.0 mm. Flow cell interna volume is 20ul and maximal flow rate 200 ml/min.
This flow cell is particularly meant for SCFE (Supercritical fluid extraction), or for preparative and flash applications. Capillaries with OD 1/16" can be connected using screw with thread UNF 10-32 and ferrule.
| Volume/optical path length | 20 µl/0.5-1.0 mm |
|---|---|
| Material | stainless steel, fused silica, PTFE |
| Outer diameter of capillary | 1/16" |
| Maximal flow rate | 200 ml/min. |
| Maximum pressure | 30MPa |
| Connecting thread | UNF 10-32 |
| Dimensions (diameter x height) | 36 x 23 mm |
| Weight | 70 g |
