Gradient preparat. pump LCP 50K
0,5 - 50 ml/min ternary low pressure gradient
- Description
- Parameters

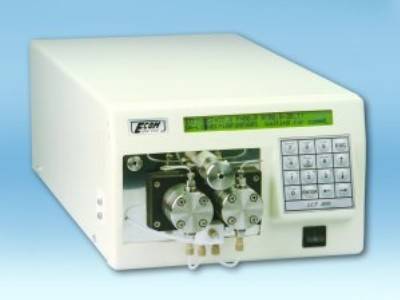

Preparative Gradient Pump LCP 50K
is a double-acting pulseless gradient preparative pump making possible to form up to ternary low pressure gradients of mobile phases with flow-rates ranging from 0,5 to 50 ml/min.
A maximum operation pressure of 28 MPa. The pump is equipped with electronic fuses which stop the flow when preset either maximum or minimum operating pressure limits are exceeded. When necessary it is possible to use back rinse of pistons (e.g. after using buffered mobile phases). Sapphire valves in a PEEK housing facilitate cleaning.
The programs controlling the changes in gradient composition during analysis may be stored in a memory.
The start may be initiated either from keyboard or with a switch on an injection valve.
The unit can be controlled using keyboard and display or using RS 232.
| Flow rate | 0,5 – 50 ml/min |
|---|---|
| Pumping system | two plungers dia. 3/8" in parallel connection, operating in counter strokes |
| Maximum operating pressure | 28 MPa |
| Accuracy of pressure measurement | ± 2% |
| Adjustable lower pressure limit | 0 – 28 MPa (in 0.1 MPa steps) |
| Adjustable upper pressure limit | 0 – 28 MPa (in 0.1 MPa steps) |
| Power supply | 230 V ± 10% , 50 Hz(115 V, 60 Hz) |
| Power input | 90 VA |
| Dimensions W x H x D | 260 x 160 x 460 mm |
| Weight | 15 kg |
| Material of pump heads | stainless steel |
| Method of setting | continuously in 0.1 ml/min steps |
| Accuracy of selected flow | ± 2% |
| Mixing of mobile phase gradient | at the inlet to the pump |
| Maximum number of gradient sections | 50 |
| Setting of concentrations of components B and C Component A is automatically adjusted to 100% | 0 – 100% in 1% steps |
| Duration of a single gradient section | 1 s to 999 min 59 s |
| Maximum number of stored files (programmes) | 100 |
| Display | display of 40 characters in 2 rows |
| Data input | 16 element keyboard |
| Number of valves | 3 (A, B and C) |
