High Pressure cell EX PLCC26 C276 Hastelloy M12

l= optional 0.1 mm – 10.0 mm



Related variants

ECOM spol. s r.o.
Part number

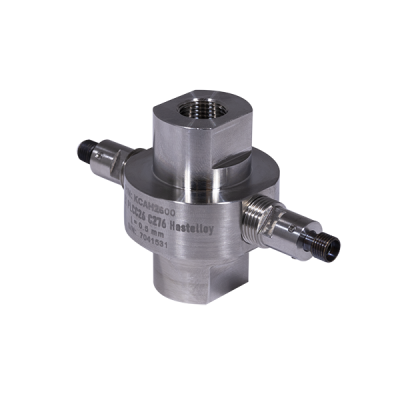

The preparative external high flow cell EX PLCC26 C276 Hastelloy M12 is used in preparative and flash liquid chromatography with a high flow rate in the mobile phase.
The cell is assembled outside of the detector and it is connected with the unit using optical fiber cables with SMA 905 connectors.
The optional optical path ranges from 0.1 mm to 10 mm.
The cell body is made of Hastelloy C276. Wetted materials used are Hastelloy, sapphire glass, and PEEK. Also available in configurations made of certified bio-inert materials.
The cell has been approved by the FDA certification for use in food and pharmacy.

Volume/optical path length 0.1 mm - 10 mm
Wetted materials Hastelloy, sapphire glass, PEEK
Body material Hastelloy C276
Maximum pressure 35 MPa
Connecting thread M12 x 1
Optical cables with SMA 905
