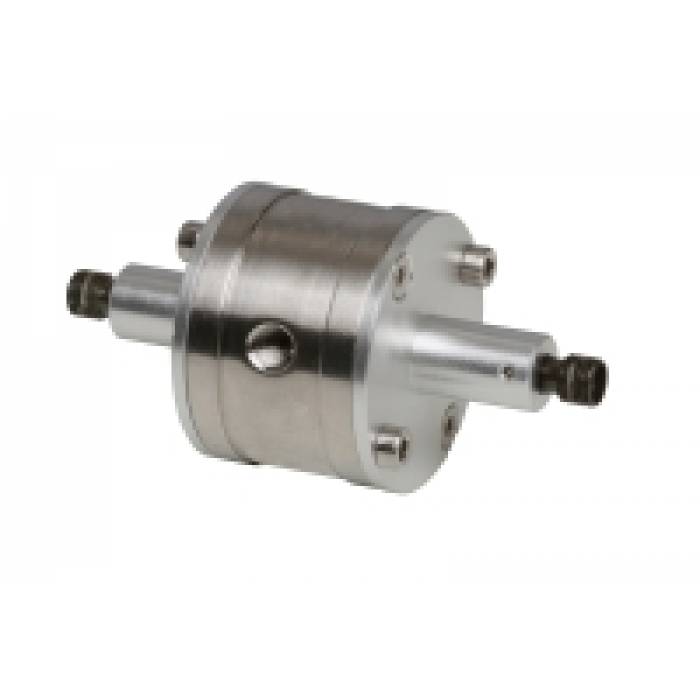

High Pressure External Cells for 1/16“ capillaries
High Pressure External Cells for 1/16“ capillaries are used in process chromatography application whare the cell has to be assembeled outside of detector..
| Image | PN | Name | Connecting thread | Optical path length [mm] | Max Pressure [MPa/PSI] | Wetted Material | Request quote |
|---|---|---|---|---|---|---|---|
|
|
PN
3HP16EX0
|
Name
High pressure cell PLCC HP16EX PEEK (l=1 mm; 1/16"; UNF10-32)
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
1.0
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
Actions
|
|
|
PN
3HP16CU0
|
Name
High pressure cell PLCC HP16 PEEK (l=customer,1/16",UNF 10-32)
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
Custom 0.1-2
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
Actions
|
|
|
PN
HP16EXS0
|
Name
High pressure cell PLCC HP16EX SS316L (l=adjustable mm; 1/16"; UNF10-32)
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
Custom 0.1-2
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS316L, PEEK; Sapphire
|
Actions
|
|
|
PN
1MPA0000
|
Name
High Pressure Cell UHPLCC EX SS 100MPA l=0.5mm, 1/16" UNF10-32
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
Custom 0.1-2
|
Max Pressure [MPa/PSI]
1000/14 500
|
Wetted Material
316L, PEEK; Sapphire
|
Actions
|
|
|
PN
2MPA0000
|
Name
High Pressure Cell UHPLCC EX SS 200MPA l=0.5mm, 1/16" UNF10-32
|
Connecting thread
UNF 10-32
|
Optical path length [mm]
0.5
|
Max Pressure [MPa/PSI]
2 000/29 000
|
Wetted Material
316L,PEEK; Sapphire
|
Actions
|
- Description
Hi Pressure External Cells for 1/16“ capillaries are are used for analyzing and monitoring the absorbance of liquids passing through the cell, where UV light is led from the detector and back using SMA 905 optical cables.
Pressure and temperature resistance: The cell is designed to withstand a maximum operating pressure of 30 MPa (4 351 PSI) or 10 00 MPa (14 500 PSI) according cell size. Also, it can withstand high operating temperatures of up to +160 °C (320 °F).
Optical path length: Different optical path lengths are available: from 0.05 mm to 2 mm according customer request
Quality of the surface: The internal flow-through hole of the cell is characterized by its high-quality processed surface. Its internal surface quality value is less than Ra 0.4. um
Wetted Materials: are a PEEK or 316L body and sapphire window
Features and Benefits
• Resistant to high pressures 30 MPa (4 351 PSI) or 1 000 MPa (14 500 PSI) and high temperatures (up to +160 °C (320 °F).)
• Elimination of dead volume
• Good rinsing without cross-contamination of the sample
• Wide range of optical path length options
• Compatible with ECOM external detectors
• Inspection Certificate EN 3.1
• Flow cells of our production are designed following the ASME-BPE (Bioprocessing Equipment) standard. This globally recognized standard ensures that equipment meets the stringent hygiene and performance criteria required in industries such as biotechnology, pharmaceuticals, and food processing. Following these requirements, our flow cells provide exceptional cleanliness, reliability, and compliance with critical bioprocessing specifications.
