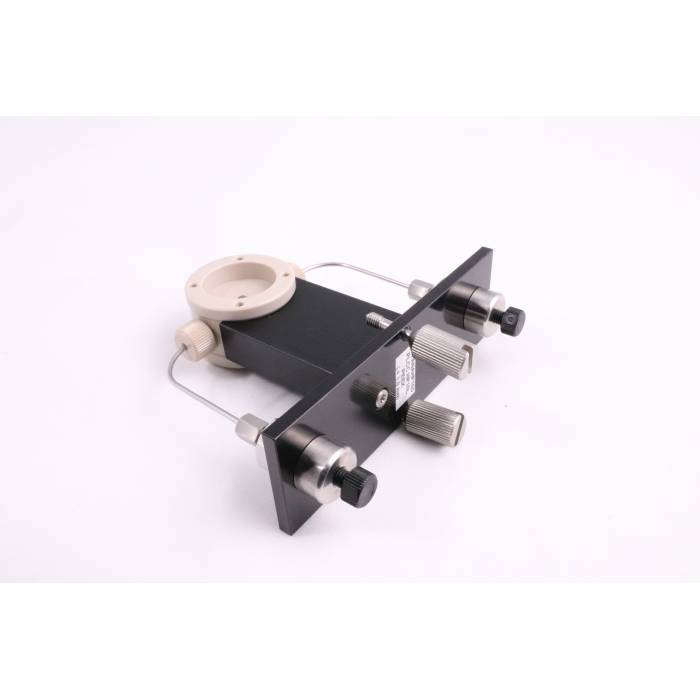

High pressure flow-cells PEEK with bracket
| Image | PN | Type | Optical Path Length [mm] | Inside Volume (µl) | Max.flow-rate (ml/min) | Thread UNF | Tube OD | Wetted material | Request quote |
|---|---|---|---|---|---|---|---|---|---|
|
|

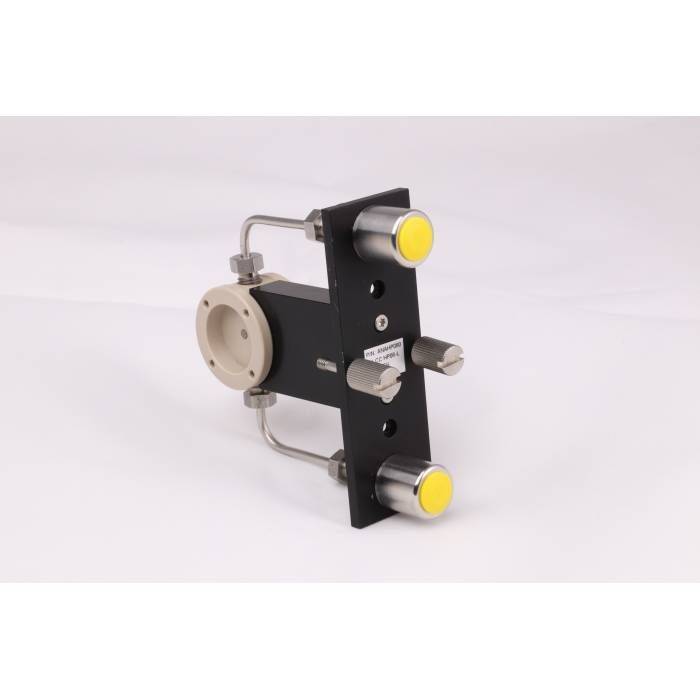

PN
ANAHP080
|
Type
High-pressure Flow Cell HP08 L PEEK (l=1mm, 1/8", UNF 5/16"-24)
|
Optical Path Length [mm]
1
|
Inside Volume (µl)
7
|
Max.flow-rate (ml/min)
3000
|
Thread UNF
UNF 5/16"-24
|
Tube OD
1/8″
|
Wetted material
PEEK, Sapphire,SS
|
Actions
|
|
|

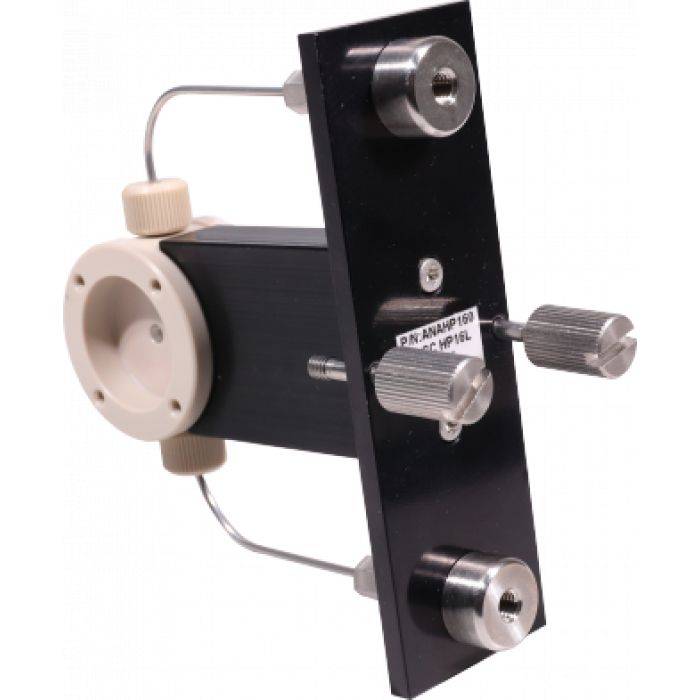

PN
ANAHP160
|
Type
High-pressure Flow Cell HP16 L PEEK (l=1 mm, 1/16", UNF 10-32)
|
Optical Path Length [mm]
1
|
Inside Volume (µl)
7
|
Max.flow-rate (ml/min)
500
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Sapphire, SS
|
Actions
|
|
|
PN
10HP16L0
|
Type
High pressure cell HP16 L PEEK (l=10 mm,1/16",UNF 10-32)
|
Optical Path Length [mm]
10
|
Inside Volume (µl)
80
|
Max.flow-rate (ml/min)
50
|
Thread UNF
UNF 10-32
|
Tube OD
1/16″
|
Wetted material
PEEK, Sapphire, SS
|
Actions
|
- Description
- Parameters
Preparative HP Flow-Cells have a unique design with an optical length of 0.1-2 mm. It is designed for preparative or flash applications and the connection is via tubing with OD 1/16" or 1/8" and thread UNF 10-32 or 5/16"-24. The internal volume of the preparative cell is 7 µl. The maximum flow rate is 50, 500 or 3000 ml/min depending on cell tyThe new series of preparative HP Flow-Cells from PEEK material are intended for ECOM HPLC systems with a UV-VIS detector and with a continuous flow of mobile phase. HP cells are offered with different optical paths, excelent pressure resistance up to 30MPa / 4351 PSI, maximum flow rate of mobile phase, and with the option of choosing the appropriate fitting and outer diameter (OD) of tubes and capillaries.
These cells are intended for ECOM detectors TOY H and TOY L.
Advantages of the new High Pressure Flow-cells design
• High pressure resistance – up to 30MPa / 4351 PSI, and flow rate up to 50, 500 or 3000 ml/min depending on cell type.
• Extended cell life – thanks to the new cell window design
• Increased temperature resistance range – now from -50 °C up to 100 °C
• Increased stability of the optical path – even under high-pressure conditions
• More easy exchangeable cells – according to preferred sensitivity/application
| Volume/optical path length | 7 µl |
|---|---|
| Wetted materials | PEEK, Sapphire |
| Body material | PEEK, (others upon request) |
| Maximal flow rate | 3000 ml/min |
| Maximum pressure | 30 MPa /4 351 PSI |
| Connecting thread | 5/16"-24 |
