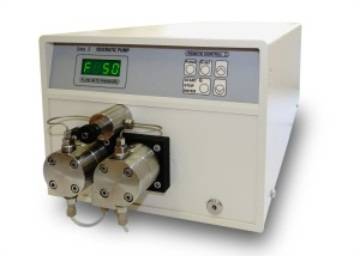

IOTA S100 Isocratic pump
0,1 - 100 ml/min, pump heads in parallel
- Description
- Parameters
With a flow rate of 0.1 - 100 ml/min and limit of pressure at 15 MPa is this pump suited for preparative applications in liquid chromatography. It is designed with two pump heads connected in parallel with piston diameter of 3/8".
There are new improvements in piston suspension, which has new plastic slide bearing and its exchange is now easier. Bypass valve has been also improved for better and easier handling.
Innovated electronics includes several protecting and diagnostic elements thus potential operational problems are signalized by error message.
Intuitive operating using simple keypad allows easy selectable functions as follows:
- flow rate
- maximal flow rate - PURGE (for priming and washing)
- high pressure limit
- pressure unit (PSI, MPa or bar)
- control mode (RS 232 or voltage)
- display brightness
There is a possibility to use this pump even at high pressure gradient mode, where are two, three or four units controlled from PC using RS232 or voltage.
When working with buffered solvents, it is possible to use pistons back washing.
| Flow rate | 0 –100 ml/min |
|---|---|
| Maximum operating pressure | 15 MPa (2180 PSI) |
| Accuracy of pressure measurement | ± 1% |
| Flow rate setting | 1 ml steps |
| Repeatability of flow rate adjusting | ± 1% |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | stainless steel, PEEK, ceramics, seals* |
| Power supply | 100 - 240 V, 50/60 Hz, 250 VA |
| Dimensions W x H x D | 220 x 170 x 450 mm |
| Weight | 10.5 kg |
| High pressure limit | 0.1 - 15 MPa (2180 PSI) |
