pH Flow Cell PEEK
PH Cells PEEK, used for ECOM Conductivity and pH monitors.
| Image | PN | Tube | Thread | Request quote |
|---|---|---|---|---|
|
|
PN
PHC16000
|
Tube
1/16“
|
Thread
UNF10-32
|
Actions
|
|
|
PN
PHC18000
|
Tube
1/8“
|
Thread
UNF ¼-28“
|
Actions
|
- Description
- Parameters

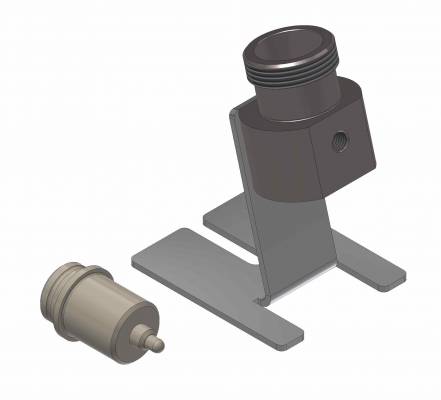

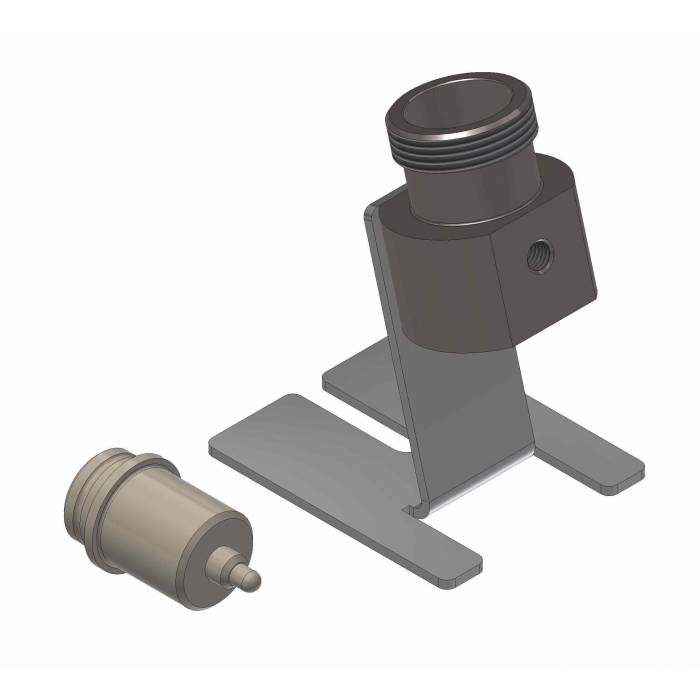

ECOM PH Cells from PEEK material are used for ECOM Conductivity and pH monitors. ECOM pH flow cells are intended for such instrumental techniques and methods as HPLC, FIA, and IEF. The cells can also be used in applications where the pH is to be monitored in chemical systems. The cell has a total internal volume of 50 microliters and is made of chemically resistant, FDA-certified PEEK material.
The internal shapes and overall internal concept inside the pH cell are designed to maintain a smooth flow of liquid to prevent cross-contamination, poor flushing of the cell, or a build-up of impurities. A 3.1 inspection certificate can be delivered with the cell. The cell is compatible with the pH probe S450CD (flat-bottom). Seals used: TEFLON rings

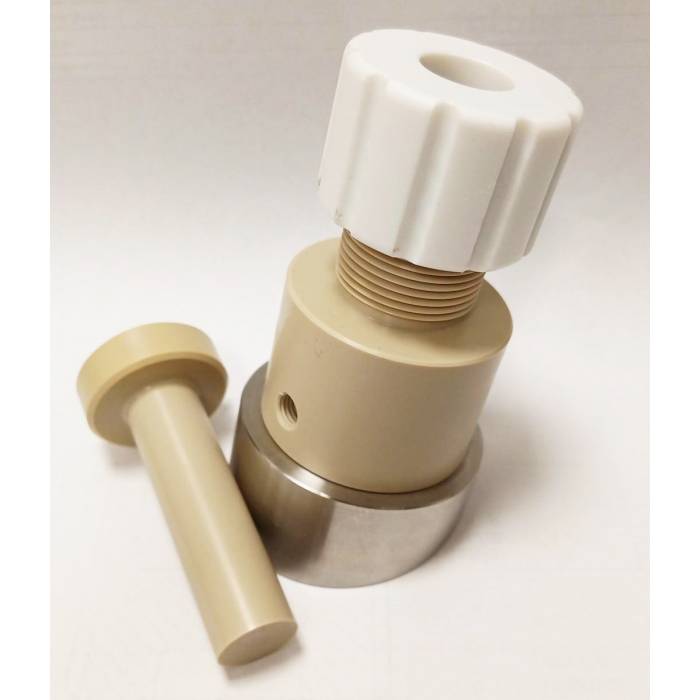

Accessories: As an accessory for the pH cell, it is possible to purchase a blanking plug made of PEEK, part number TCPH0010. It serves as a cap for the pH cell so that the cell can be cleaned during flow when the cell is used without the pH sensor.
| Material | Body PEEK, plug PBT |
|---|---|
| Wetted materials | PEEK |
| Maximum temperature | 200 °C (392 F) |
| Maximum operating pressure | 0.4 MPa, 60 psi |
| Internal surface of pH cell | Ra < 0.4 |
| Internal volume | 50 µl |
| Dimensions (diameter x height) | 50 mm (1.96 in), 60 mm (2.36 in) |
| Weight | 0.1 kg (3.52 lb) |
