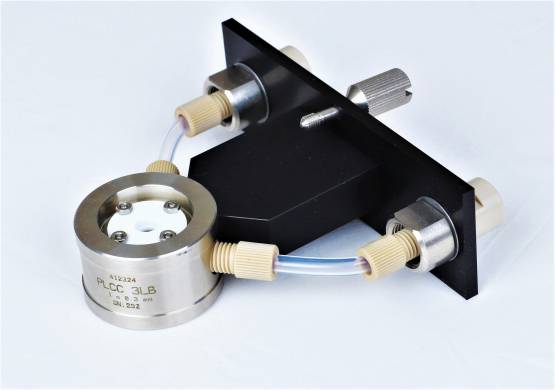

Preparative cell in bracket PLCC3L L
Preparative cell in bracket PLCC 3L has a unique design with an optical length of 0.3 mm. Thanks to the construction of the bypass, it prevents the formation of bubbles. It is designed for preparative or flash applications and it is possible to connect it using tubing with OD 3/16" and thread 5/16"-24. Internal volume of preparative cell is 80 µl. Maximum flow rate is 3000 ml/min.
See our website or contact us if you are looking for different cell parameters and materials. We are keen to design cells according to your needs. Also available in configurations made of certified bio-inert materials.
|Volume/optical path length||40 µl/0.3 mm|
|Wetted materials||Stainless steel, quartz, FEP|
|Body material||Stainless steel|
|Maximal flow rate||3000 ml/min|
|Tubing OD diameter||3/16"|
|Maximum operating pressure||2 MPa (290 psi)|
TOY18DAD 400 H Two Channel UV Detector
Stand alone PDA detector measures at two wavelengths simultaneously in range 200 - 400 nm with possibility to see current scan.
TOY18DAD 400 L Scanning UV Detector
200 - 400 nm Scanning PDA detector measures at four wavelengths simultaneously or sends scan with speed up to 20 Hz which allows to create 3D picture.
TOY18DAD 800 L Scanning Channel UV Detector
200 - 800 nm scanning PDA detector measures at four wavelengths simultaneously or sends scan with speed up to 20 Hz which allows to create 3D picture.
