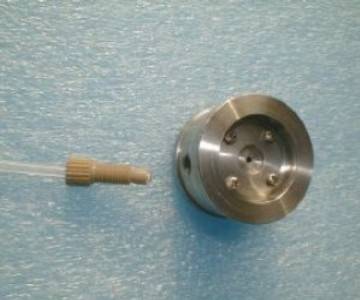

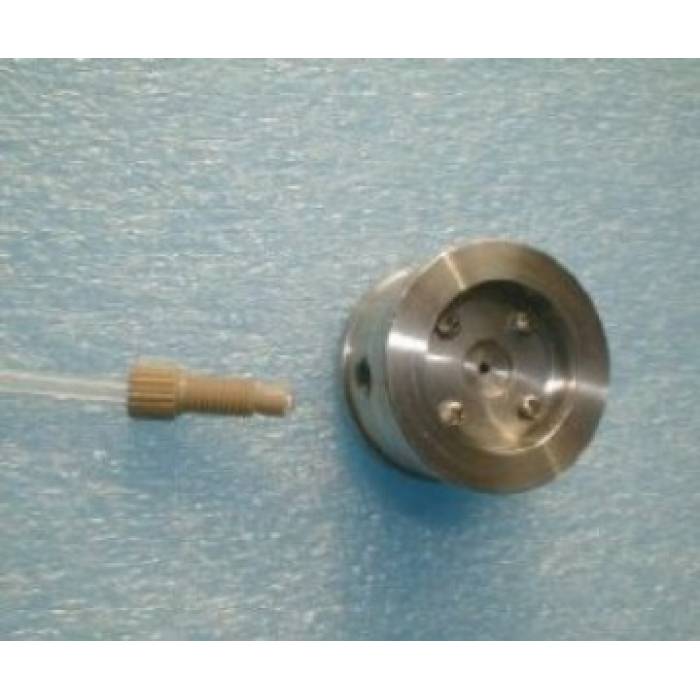

Preparative cell PLCC 13 l=0.3, 1/8", 1/4"-28

For detectors LCD 2070, LCD 2071.2 and LCD 2071.3

Availability
This product cannot be purchased.
Manufacturer
ECOM spol. s r.o.
Part number
24000000

 Unique design of cell makes possible to change the length of the optical path according to the particular conditions of the analysis from about 0.3 mm to 2.4 mm. It is designed for preparative or flash applications and it is possible to connect it using capillaries with O.D.1/8" and thread 1/4"-28 . Internal volume of preparative cell is 40, 55 and 70 ul according to adjusted optical path. Maximum flow rate is 500 ml/min.

Material stainless steel, fused silica, PTFE
Maximal flow rate 500 ml/min.
Optical path 0.3 mm cell volume ca. 40 µl
Optical path 1.3 - 1.4 mm cell volume ca. 55 µl
Optical path 2.3 - 2.4 mm cell volume ca. 70 µl
Connecting thread capillaries with OD 1/8" and therad 1/4"-28
Dimensions (diameter x height) 36 x 23 mm
Weight 70 g
