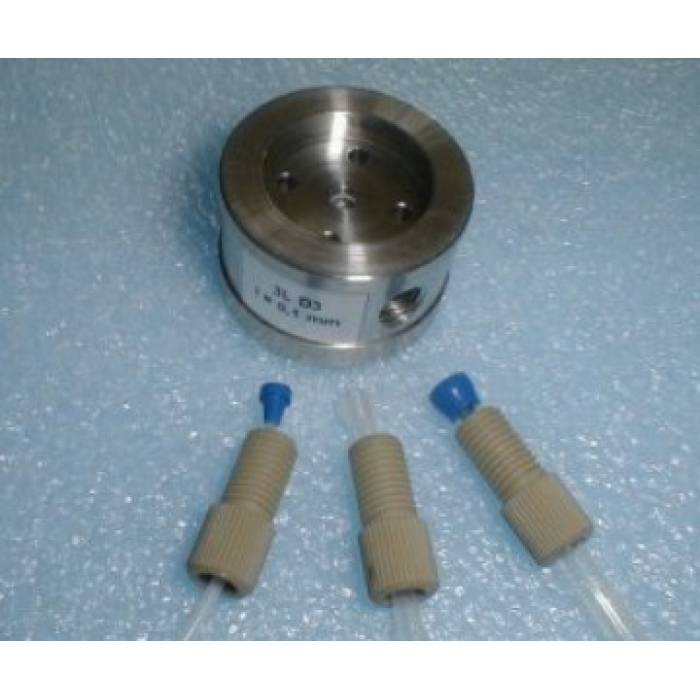

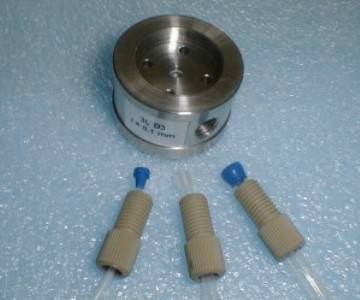

Preparative cell PLCC 3L (l=0.3, 3/16", 5/16"-24)

Flow rate up to 3L/min. For detectors Flash 06, LCD 2073, OPAL, TOPAZ

Availability
This product cannot be purchased.
Manufacturer
Ecom
Part number
3L000000

 Unique design of cell makes possible to change the length of the optical path according to the particular conditions of the analysis from about 0.3 mm to 3.9 mm.Internal volume of preparative cell is 80, 100 and 120 ul according to adjusted optical path. Maximum flow rate is 3 L/min. It is designed for preparative or flash applications and it is possible to connect it using tubing with O.D. 3/16" and thread 5/16"-24

Material stainless steel, fused silica, PTFE
Maximal flow rate 3 L/min.
Optical path 0.3 mm cell volume ca. 80 µl
Optical path 1.9 - 2.1 mm cell volume ca. 100 µl
Optical path 3.7 - 3.9 mm cell volume ca. 120 µl
Connecting thread tubing with OD 3/16" and thread 5/16"-24
Dimensions (diameter x height) 36 x 23 mm
Weight 125 g
