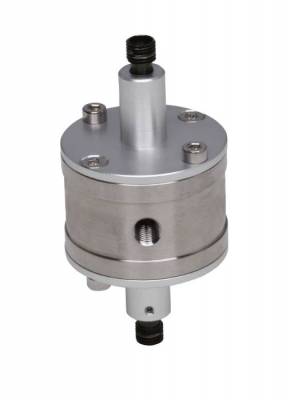

Preparative External Cell PLCC14 EX
l=0.1mm; tubing with OD 1/8" and thread 1/4"-28
External, for detectors TOY18DAD and ECD2800EX
Related variants
- Description
- Parameters
Unique design of cell makes possible to change the length of the optical path according to the particular conditions of the analysis from about 0.1 mm.
It is designed for preparative or flash applications and it is possible to connect it using capillaries with O.D.1/8" and thread 1/4"-28.
Internal volume of preparative cell is 40, 55 and 70 ul according to adjusted optical path. Maximum flow rate is 500 ml/min. .
Volume/optical path length | 0.1 / 40 µl; 1.3 - 1.4 mm/55 µl; 2.3 - 2.4 mm/ 70 µl; |
---|---|
Material | stainless steel, fused silica, PTFE |
Maximal flow rate | 500 ml/min. |
Tubing OD diameter | 1/8" |
Connecting thread | capillaries with OD 1/8" or 1/16" and therad 1/4"-28 |
Maximum operating pressure | 2 MPa |
Dimensions (diameter x height) | 36 x 23 mm |
Weight | 70 g |
