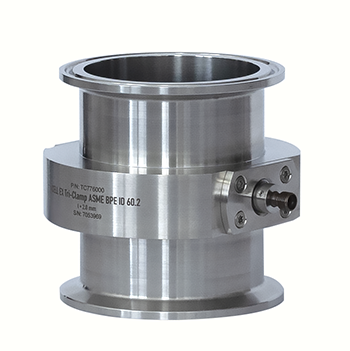

Preparative External Cell TRI-CLAMP 2.5" ASME BPE
l=optional 0.1 mm – 10.0 mm; connection with TRI-CLAMP flanges OD 2.5" (77.5 mm).
- Description
- Parameters
- Files to download 1
l= optional 0.1 mm – 10.0 mm; connection with TRI-CLAMP flanges OD 2.5" (77.5 mm).
It is used out of a detector connected by optical cables with SMA 905 connectors.
The flow cells are provided with an Inspection Certificate EN 3.1.
Flow cells of our production are designed following the ASME-BPE (Bioprocessing Equipment) standard. This globally recognized standard ensures that equipment meets the stringent hygiene and performance criteria required in industries, such as biotechnology, pharmaceuticals, and food processing. Following these requirements, our flow cells provide exceptional cleanliness, reliability, and compliance with critical bioprocessing specifications.
See more products on our website or contact us if you are looking for different cell parameters and materials. We can also produce cells according to your needs. Also available in configurations made of certified bio-inert materials.
| Volume/optical path length | According to the optical path |
|---|---|
| Wetted materials | Stainless steel, sapphire glass, PEEK |
| Body material | Stainless steel |
| Tubing OD diameter | TRI-CLAMP flange 2.5" (77.5 mm) |
| Maximum operating pressure | 2 MPa (290 psi) |
| Optical cables | with connector SMA 905 |
| Filename | Type |
|---|---|
| Info-Tri_clamp_cells-en | pdf (1,1 MB) |
