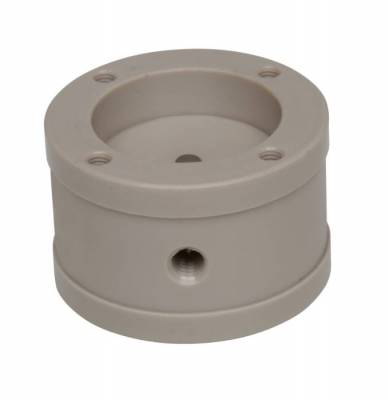

Preparative HP Cell PLCC HP16 PEEK

l=1 mm; tubing with OD 1/16” and thread UNF 10-32
High pressure PEEK cell
For detectors Flash, TOY18DAD and TOY18FIX, BABY18DAD, BABY18FIX.
Availability
Manufacturer
Ecom
Part number
3HP1600X
Preparative HP Cell PLCC HP16 PEEK has a unique design with an optical length of 1 mm. It is designed for preparative or flash applications and it is possible to connect it using tubing with OD 1/16" and thread UNF 10-32. Internal volume of preparative cell is 20 µl. Maximum flow rate is 500 ml/min.

If you are looking for a different cells parameters and materials , see our website or contact us. We are keen to design cell according your needs.
Volume/optical path length 20 µl/ 1 mm
Wetted materials PEEK, quartz, FEP
Body material PEEK
Maximal flow rate 500 ml/min
Tubing OD diameter 1/16"
Connecting thread UNF 10-32
Maximum operating pressure 30 MPa (4351 psi)
