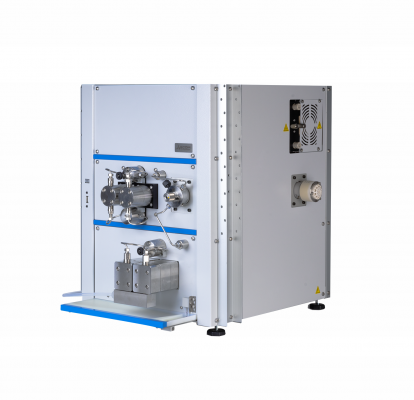

PREPBOX A3L8E Chromatography Separation System
PREPBOX is a compact alternative to modular preparative systems. It is assembled according to the customer's wishes. It is used for high-capacity systems or with centrifugal chromatography systems like in pharmaceutical purification of cannabis extracts (CBD, CBN, CBG, CBC, THC...)
- Files to download 3
Complete preparative modular system with one basic gradient pump and optionally secondary pump for repetitive sampling or with injection valve. Also switching valve for CCC applications. PDA four channel detector up to 800 nm. It is assembled according to the customer's wishes. It is used for high-capacity systems or with centrifugal chromatography systems like in pharmaceutical purification of cannabis extracts (CBD, CBN, CBG, CBC, THC...).
ECOMAC SW installed at internal PC controls the system. Fractions are collected by means of 10 position valve
It is necessary to purchase an operating system for the PREPBOX - in most cases we recommend Windows OS (P/N: ABB90000) or Linux (on request).
The system also supports the Clarity software. It is also possible to purchase a wireless mouse and keyboard set (P/N: EPC-0028) and a computer monitor (P/N: EPC-0027).
TOY18DAD 800L Detector
It is UV-VIS diode array detector, which allow measuring absorbance of four wavelengths in range of 200-800 nm simultaneously in one cell just as scanning of whole spectra.
ECP201L Preparative HPLC Pump
Preparative pump suited for preparative liquid chromatography with very high pressure up to 15 MPa at flow rate of 1000 ml/min. Advantage of this pump is a very stable run even at low flow rates.
ECP2300 Preparative Gradient Pump
Preparative HPLC pump suited for preparative applications in liquid chromatography with a pressure up to 15 MPa at flow rate of 300 ml/min. New sophisticated unit allows achieving a precise low-pressure gradient, i.e. gradual changes of solvent composition by mixing up to four liquids at the pump entry.
|Interface||5x USB, HDMI, 2X RS232, LAN, VGA|
|Power supply||100 - 240 V AC|
|Power input||490 W|
|Dimensions W x H x D||405x490x525 mm (15.94x19.29x20.67 in)|
|Info-Piston_Seal_Materials-en||pdf (134,34 KB)|
|Info-PREPBOX_A3L8E_A338E_Chromatography_separation_systems-en||pdf (762,77 KB)|
|Manual-PREPBOX-A3xxx-en-00.pdf||pdf (2,26 MB)|
