PREPSYSTEM-Chromatography Separation System

4 channel Scanning 200-800 Pressure Comp. Learning New Product

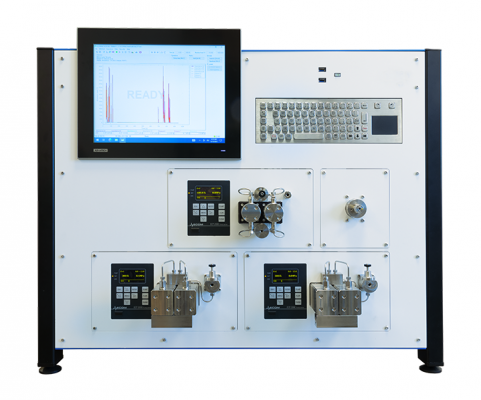

A complete flash/preparative/pilot scale/production modular system

ECOM spol. s r.o.
Part number

We would like to introduce an ECOM product news – a complete flash/preparative/pilot scale/production modular system with an excellent price/performance ratio.

Applications: The system can be used e.g. in high-capacity systems or with centrifugal liquid/liquid chromatography systems, like in pharmaceutical purification of plant extracts – e.g. cannabinoids (CBD, CBN, CBG, CBC, THC, etc.), peptides, and oligonucleotides, algae extracts, oleoresins, etc., also in new molecule development or synthesis.

The device has 3 pumps, 2 main ones are intended for a "high" pressure gradient (parallel pump connection), and one of them has a 6-solvent selection valve. An optional third pump is used for repetitive sampling of high-volume samples. The unit also has a loop sample injection valve and a switching valve for CCC/CPC applications (ascending/descending mode). The unit's universal PDA detector measures absorbance at four wavelengths at the same time up to 800 nm.

Software: The ECOMAC software or Clarity software (FDA 21 CFR Part 11 compliant) is internally installed in the PC controlling the system.

 The unit is completely customizable to the application needs to meet any scale criteria–from small flash sample separation testing through pilot scale prediction to high-capacity production.
It could work in ranges of 10 ml/min.–6000 ml/min and it can be easily and automatically switched between these scales.
