Swagelok Connected Flow-Cells

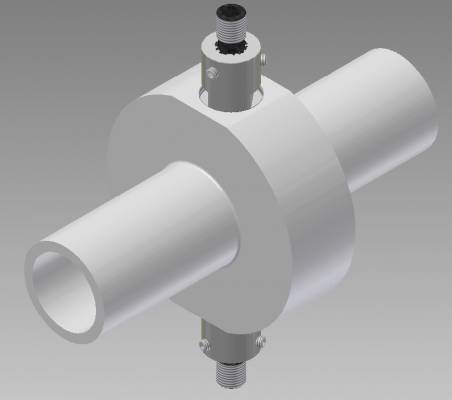

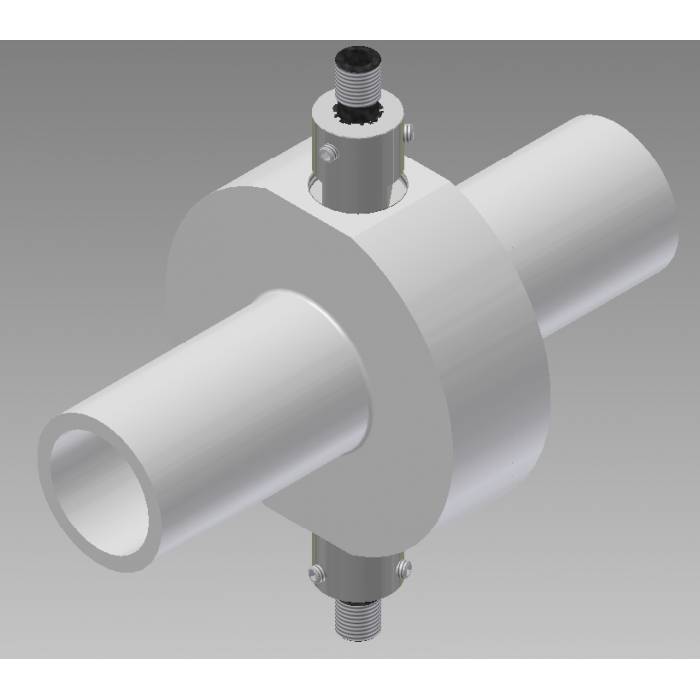

Swagelok Connected Flow-Cells are used in preparative chromatographic system. Their desing allows simply conection using Swagelok connectors.

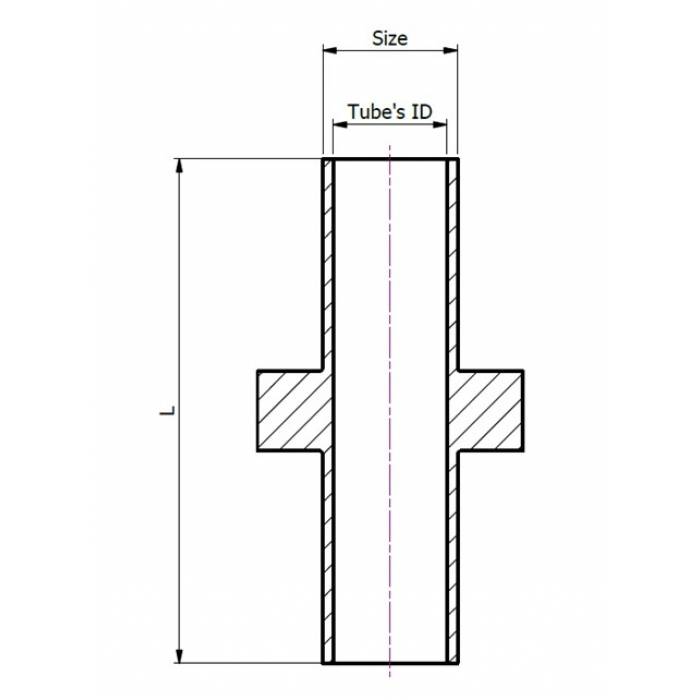

| Image | PN | Name | Size | Tube ID [mm] | Optical path length [mm] | Max Pressure [MPa/PSI] | Wetted Material | L [mm] | Request quote |
|---|---|---|---|---|---|---|---|---|---|
|
|
PN
KC014000
|
Name
Swagelok Connected Flow-Cells SS Size 1/4" ID 4.57 mm
|
Size
1/4"
|
Tube ID [mm]
4.57
|
Optical path length [mm]
0.1–4
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS 316L; PEEK MT; Sapphire
|
L [mm]
57
|
Actions
|
|
|
PN
KC038000
|
Name
Swagelok Connected Flow-Cells SS Size 3/8" ID 7.74 mm
|
Size
3/8"
|
Tube ID [mm]
7.74
|
Optical path length [mm]
0.1–4
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS 316L; PEEK MT; Sapphire
|
L [mm]
61
|
Actions
|
|
|
PN
KC012000
|
Name
Swagelok Connected Flow-Cells SS Size 1/2" ID 9.40 mm
|
Size
1/2"
|
Tube ID [mm]
9.40
|
Optical path length [mm]
0.1–5
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS 316L; PEEK MT; Sapphire
|
L [mm]
79
|
Actions
|
|
|
PN
KC034000
|
Name
Swagelok Connected Flow-Cell SS Size 3/4" ID 15.75 mm
|
Size
3/4"
|
Tube ID [mm]
15.75
|
Optical path length [mm]
0.1–5
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS 316L; PEEK MT; Sapphire
|
L [mm]
79
|
Actions
|
|
|
PN
KC010000
|
Name
Swagelok Connected Flow-Cells SS Size 1" ID 22.10 mm
|
Size
1"
|
Tube ID [mm]
22.10
|
Optical path length [mm]
0.1–10
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
SS 316L; PEEK MT; Sapphire
|
L [mm]
95
|
Actions
|
- Description
- Parameters
Swagelok Connected Flow-Cells are used for analyzing and monitoring the absorbance of liquids passing through the cell, where UV light is led from the detector and back using SMA 905 optical cables.
Pressure and temperature resistance: The cell is designed to withstand a maximum operating pressure of 30 MPa (4351 PSI) . Also, it can withstand high operating temperatures of up to +160 °C (320 °F).
Optical path length: Different optical path lengths are available: from 0.05 mm to 2; 4; 5- and 10 mm according cell size.
Quality of the surface: The internal flow-through hole of the cell is characterized by its high-quality processed surface. Its internal surface quality value is less than Ra 0.4. On request can be the cell electro polished or passivated.
Wetted Materials: are a 316L stainless steel body a sapphire window and an inner insert made of PEEK. On request can be cell body made from Hastelloy.
Features and Benefits
• Resistant to high pressures 30 MPa (4351 PSI) and high temperatures (up to +160 °C (320 °F).)
• Elimination of dead volume
• Good rinsing without cross-contamination of the sample
• Compliant with USP Class VI requirements
• Wide range of optical path length options
• Compatible with ECOM external TOY detectors
• Inspection Certificate EN 3.1
| Wetted materials | 316L, PEEK, Sapphire glass |
|---|---|
| Body material | 316L SS |
| Maximum pressure | 30 MPa (1160 PSI) or 2MPa (290 PSI) |
| Maximum temperature | 160°C |
| Connecting thread | tri-clamp |
| Optical path – Basic continuously changeable | 0.05 mm to 2; 4; 5- and 10 mm |
| Optical cables | with connector SMA 905 |
