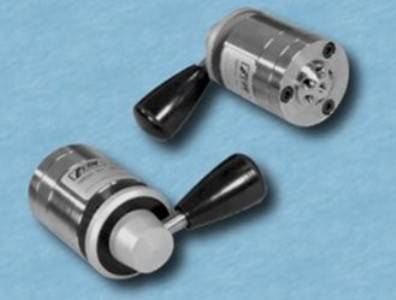

Switching Valve A
For column switching 6 x 1
- Description
- Parameters
It is designed for switching columns without stopping the flow of a mobile phase (without stopping a pump) up to 35 MPa. The valve is controlled manually by means of a handle.
According to the type of connection the valve may serve either for switching of up to six inlets to a single outlet, or for switching of up to six outlets to a single inlet. The individual positions of the handle are fixed by a ball, which is pressed to grooves in the rotor.
Capillaries (1/16") can be fasten by standard HPLC nuts for all types of vavles.
Outlets:
Accessories:
| Qty | Name |
| 7 | SS Nut 1/16", 10-32 threads |
| 7 | SS Ferrule 1/16" |
| 2 | Nut OC M 4 x 6 |
| Inside hole diameter | d=0,5mm |
|---|---|
| Material stainless | stainless steel, Vespel |
| Capillary Connection | UNF 10-32 standard thread |
| Control | manual |
| Maximum operating pressure | 35 MPa |
| Dimensions W x H x D | d=41mm/72mm |
