TOY18DAD 400 EXR Scanning UV Detector

4 channel Scanning 200-400

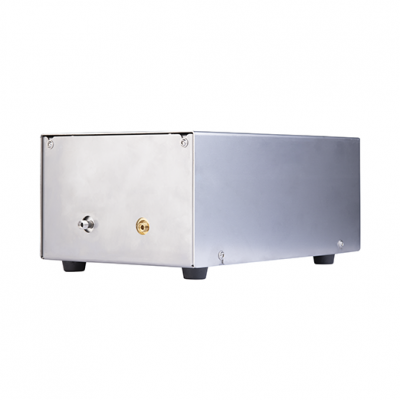

An OEM UV detector with SMA 905 connectors, enabling the use of an external cell connected by optical cables. The Scanning version measures at 4 wavelengths simultaneously or sends the scan at a speed of 20 Hz which allows the creation of a 3D picture.

Availability

Related variants

Manufacturer
ECOM spol. s r.o.
Part number
TOY03ERX

It is an OEM UV detector with SMA 905 connectors enabling the use of an external cell connected by optical cables. It is intended
to be used in preparative and flash chromatography with diode array (DAD) in the range of 200–400 nm.
Multiple wavelengths or the scan are used in liquid chromatography to verify the purity of samples being analyzed or in situations when some peaks absorb at different wavelengths.

The unit is supplied with an AMY17 PCB board. It powers the lamps and controls the unit. It has a lot of new functions including higher speed sampling. The unit is equipped with an RS232 communication port.

Main features and benefits:

  • compact size
  • built-in lamp working hours counter
  • cell connection using optical cables
  • measuring at 4 wavelengths simultaneously and the current scan with a 3D picture
  • sophisticated diagnostic software

Note: An external cell and optical cables are not a part of these units and must be ordered separately

Number of channels (Signals) 4
Scan 200–400 nm, up to 20 Hz, step 1 nm
Noise Level ±8 × 10–5 AU
Communication RS232
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ± 0.5 nm
Drift (Test cell, 254nm) 5 × 10–3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Communication RS232
Power supply 24 -36 V DC
Power input 48 W
Materials in contact with mobile phase depends on the selected cell
Dimensions W x H x D 142 × 100 × 220 mm (5.59 × 3.94 × 8.66 in)
Weight 2.22 kg (4.89 lb)
Filename Type
Info-TOY18DAD400_EXR_detector pdf (879,23 KB)
