TOY18DAD 400 Two Channel UV Detector

2 channel 200-400

200 - 400 nm Two Channel  PDA detector  measures at two wavelengths simultaneously with possibility to see current scan.

Availability

Related variants

Manufacturer
ECOM spol. s r.o.
Part number
TOY0100Y

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

The unit is supplied with AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and control the unit.

Most important features of TOYDAD  detectors:
• small dimensions
built-in lamp working hours counter
easy replacement of flow cell
measuring at more wavelengths simultaneously
sophisticated diagnostic software



PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)

volume/optical path (adjustable) 45 μl / 0.3 mm; 55 μl / 1.4 mm; 70 μl / 2.4 mm
Cell connecting tubing with OD = 1/8", thread 1/4"-28
Number of channels (Signals) 2
Scan 200 - 400 nm,informative
Number of CCD elements 128
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/h
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials FEP; fused silica, stainless steel. PEEK
Maximal flow rate 500 or 3 000 ml/min depending on the cell

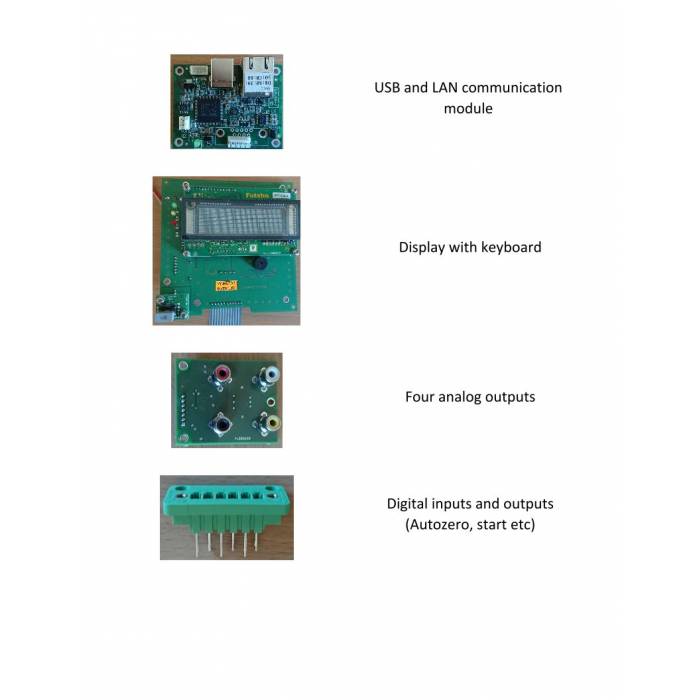

Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in)
Weight 3.20 kg (7.06 lb)
Optical cables no
