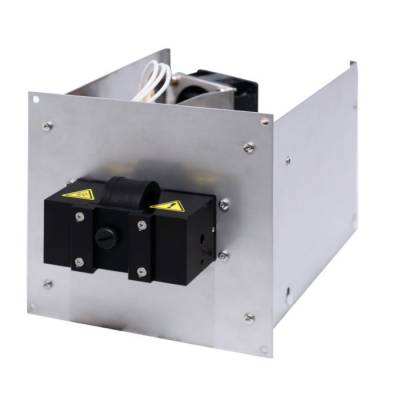

TOY18DAD 400 U Four Channel UV Detector
4 channel
200-400
Four Channel version measures at four wavelengths simultaneously with possibility to see current scan.
Related variants
Categories
Manufacturer
ECOM spol. s r.o.
Part number
TOYU020Y
- Description
- Parameters
- Files to download 1
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
Most important features of TOY18DAD U units:
- small dimensions
- easy replacement of flow cell
- built-in lamp working hours counter
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
Number of channels (Signals) | 4 |
---|---|
Scan | 200-400 nm, informative |
Number of CCD elements | 128 |
Accuracy of adjustment | ± 1 nm |
Typical spectral half-width | 10 nm |
Reproducibility | ±0.5 nm |
Noise level at test cell (254 nm, TC 0.75 s) | ± 5x10-5 AU |
Drift at test cell (254 nm after 1 h) | 1x10-3 AU/hr |
Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
Wetted materials | PTFE; fused silica, stainless steel, PEEK |
Communication | RS232; optionally USB and LAN |
Power supply | 24 -36 V DC |
Power input | 48 W |
Dimensions W x H x D | 220x120x110 mm (8.67x4.72x4.33 in) |
Weight | 1.9 kg (4.19 Ib) |
Optical cables | no |
Filename | Type |
---|---|
Info-TOY18DAD400U_detector-en-00.pdf | pdf (161,86 KB) |
Deuterium lamp for TOYDAD-L + TOY14 + TOY18
Part number: MDTA1200
For detectors TOYDAD-L + TOY 14 + T0Y 18
Halogen lamp with cable and connector
Part number: 2052B900
For Flash DAD and TOYDAD detectors up to 800nm and for detectors ECD2800 and ECDA2800.
