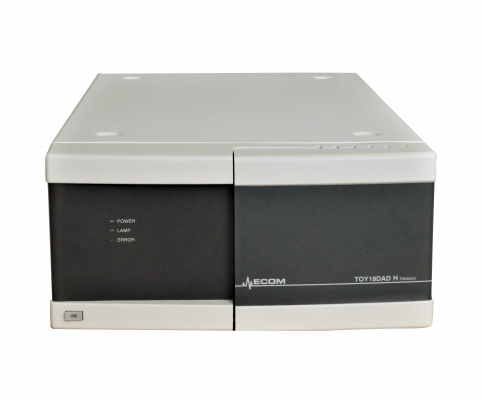

TOY18DAD 600 H Two Channel UV Detector
Stand alone PDA detector measures at two wavelengths simultaneously in range 200 - 600 nm with possibility to see current scan.
Related variants
- Description
- Parameters
- Files to download 3
Two Channel version measures at two wavelengths simultaneously with possibility to see current scan.
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
Most important features of TOY18DAD H detectors:
•built-in lamp working hours counter
•easy replacement of flow cell
•measuring at more wavelengths simultaneously
•sophisticated diagnostic software
| Number of channels (Signals) | 2 |
|---|---|
| Scan | Informative 200 – 600 nm |
| Number of CCD elements | 256 |
| Accuracy of adjustment | ± 1 nm /±0.5 nm |
| Typical spectral half-width | 10 nm |
| Reproducibility | ± 0.5 nm |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/hr |
| Time constant | Time constant (T63) 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Communication | RS232,Ethernet (LAN),USB |
| Power supply | 100-240V; 50 - 60 Hz |
| Power input | 100 VA (120 VA for upcoming version) |
| Dimensions W x H x D | 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in) |
| Weight | 7.5 kg (16.53 lb) |
| Materials in contact with mobile phase | FEP; fused silica, stainless steel, PEEK, KEL-F |
| Optical cables | no |
| Filename | Type |
|---|---|
| Info-TOY18DAD600_H_detector_PFC-en-03.pdf | pdf (136,28 KB) |
| Manual-TOY18_20DAD_HK_H-cz-00.pdf | pdf (2,6 MB) |
| Manual-TOY18_20DAD_HK_H-en-00.pdf | pdf (2,52 MB) |
