TOY18DAD 600 I Two Channel UV Detector

2 channel 200-600

200 - 600 nm Two Channel  PDA detector measures at two wavelengths simultaneously with the possibility to see the current scan.

Availability

Related variants

Manufacturer
ECOM spol. s r.o.
Part number
TOYI110Y

More wavelengths or scan are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

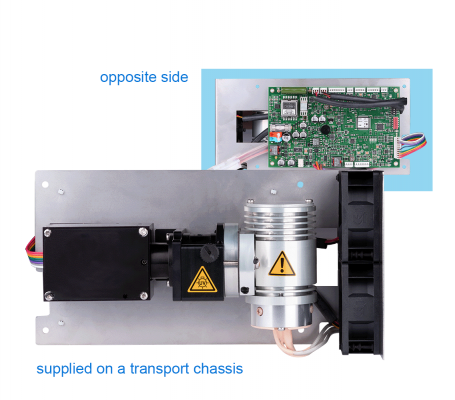

The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and controls the unit.

Most important features of TOYDAD I detectors:
• small dimensions
built-in lamp working hours counter
easy replacement of flow cell
measuring at more wavelengths simultaneously
sophisticated diagnostic software


PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)

volume/optical path (adjustable) 40 μl / 0.3 mm; 55 μl / 1.3 mm; 70 μl / 2.4 mm
Cell connecting tubing with OD = 1/8", thread 1/4"-28
Number of channels (Signals) 2
Scan 200 - 600 nm ,informative
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in)
Weight 1.250 kg (2.46 lb)
Materials in contact with mobile phase FEP; fused silica, stainless steel. PEEK
Optical cables no
