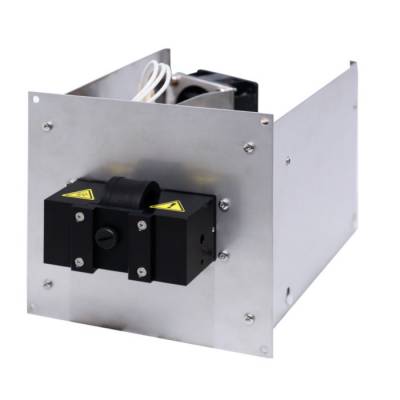

TOY18DAD 600 U Two Channel UV Detector

2 channel 200-600

Two Channel version measures at two wavelengths simultaneously with possibility to see current scan.

Availability

Related variants

Manufacturer
ECOM spol. s r.o.
Part number
TOYU110Y

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.

Most important features of TOY18DAD U units:

  • small dimensions
  • easy replacement of flow cell
  • built-in lamp working hours counter
  • measuring at more wavelengths simultaneously
  • sophisticated diagnostic software
Number of channels (Signals) 2
Scan 200-600 nm, informative
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Noise level at test cell (254 nm, TC 0.75 s) ± 5x10-5 AU
Drift at test cell (254 nm after 1 h) 1x10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials PTFE; fused silica, stainless steel, PEEK
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 220x120x110 mm (8.67x4.72x4.33 in)
Weight 1.9 kg (4.19 Ib)
Optical cables no
