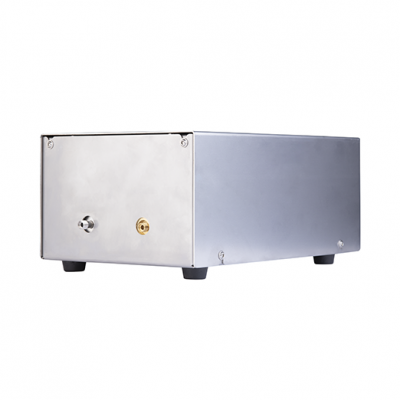

TOY18DAD 800 EXR Scanning UV Detector
An OEM UV detector with SMA 905 connectors, enabling the use of an external cell connected by optical cables. The Scanning version measures at 4 wavelengths simultaneously or sends the scan at a speed of 20 Hz which allows creating a 3D picture.
Related variants
- Description
- Parameters
- Files to download 1
It is an OEM UV detector with SMA 905 connectors enabling the use of an external cell connected by optical cables. It is intended
to be used in preparative and flash chromatography with diode array (DAD) in the range of 200–800 nm.
Multiple wavelengths or the scan are used in liquid chromatography to verify the purity of samples being analyzed or in situations when some peaks absorb at different wavelengths.
The unit is supplied with an AMY17 PCB board. It powers the lamps and controls the unit. It has a lot of new functions including higher speed sampling. The unit is equipped with an RS232 communication port.
Main features and benefits:
- compact size
- built-in lamp working hours counter
- cell connection using optical cables
- measures at 4 wavelengths simultaneously or sends the scan at a speed of 20 Hz which enables creating of a 3D picture
- sophisticated diagnostic software
Note: An external cell and optical cables are not a part of these units and must be ordered separately
Number of channels (Signals) | 4 |
---|---|
Scan | 200-800 nm, up to 20 Hz, step 1 nm |
Noise Level | ±8 × 10–5 AU |
Communication | RS232 |
Accuracy of adjustment | ± 1 nm |
Typical spectral half-width | 10 nm |
Reproducibility | ± 0.5 nm |
Drift (Test cell, 254nm) | 5 × 10–3 AU/hr |
Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
Communication | RS232 |
Power supply | 24 -36 V DC |
Power input | 48 W |
Materials in contact with mobile phase | depends on the selected cell |
Dimensions W x H x D | 145 × 113 × 202 mm (5.71 × 4.45 × 7.95 in) |
Weight | 3.0 kg (6.61 lb) |
Filename | Type |
---|---|
Info-TOY18DAD800_EXR_detector | pdf (879,09 KB) |
