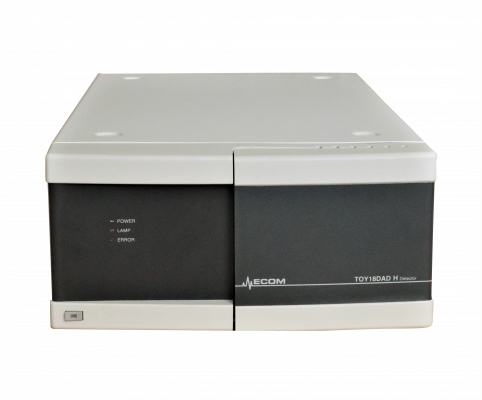

TOY18DAD 800 H Scanning UV Detector
4 channel
Scanning
200-800
Stand alone PDA Scanning detector measures at four wavelengths simultaneously in range 200 - 800 nm or sends scan with speed up to 20 Hz which allows to create 3D picture.
Related variants
Categories
Manufacturer
ECOM spol. s r.o.
Part number
TOYH330Y
- Description
- Parameters
- Files to download 3
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
Most important features of TOY18DAD H detectors:
•built-in lamp working hours counter
•easy replacement of flow cell
•measuring at more wavelengths simultaneously
•sophisticated diagnostic software
Number of channels (Signals) | 4 |
---|---|
Scan | 200 - 800 nm, 20 Hz, step 1 nm |
Number of CCD elements | 256 |
Communication | RS232 |
Ethernet (LAN) | |
USB | |
Accuracy of adjustment | ± 1 nm /±0.5 nm |
Typical spectral half-width | 10 nm |
Reproducibility | ± 0.5 nm |
Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
Drift (Test cell, 254nm) | 1 x 10-3 AU/hr |
Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
Communication | RS232,Ethernet (LAN),USB |
Power supply | 100-240V 50/60Hz |
Power input | 100 VA (120 VA for upcoming version) |
Materials in contact with mobile phase | FEP; fused silica, stainless steel, PEEK, KEL-F |
Optical cables | no |
Dimensions W x H x D | 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in) |
Weight | 7.5 kg (16.53 lb) |
Filename | Type |
---|---|
Info-TOY18DAD800_H_detector_PFC-en | pdf (120,48 KB) |
Manual-TOY18_20DAD_HK_H-cz-00.pdf | pdf (2,6 MB) |
Manual-TOY18_20DAD_HK_H-en-00.pdf | pdf (2,52 MB) |
