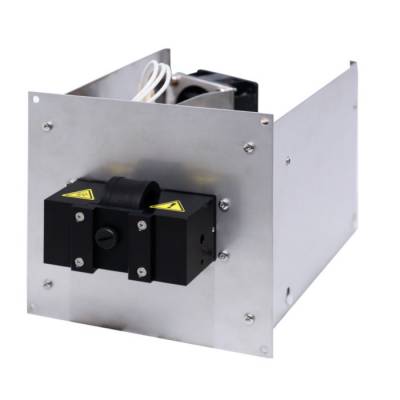

TOY18DAD 800 U Scanning UV Detector

4 channel Scanning 200-800

Scanning version measures at four wavelengths simultaneously or sends scan with speed up to 20 Hz which allows to create 3D picture.


Related variants

ECOM spol. s r.o.
Part number

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.

Most important features of TOY18DAD U units:

  • small dimensions
  • easy replacement of flow cell
  • built-in lamp working hours counter
  • measuring at more wavelengths simultaneously
  • sophisticated diagnostic software
Number of channels (Signals) 4
Scan 200-800 nm, 20 Hz, step 1 nm
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Noise level at test cell (254 nm, TC 0.75 s) ± 5x10-5 AU
Drift at test cell (254 nm after 1 h) 1x10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials PTFE; fused silica, stainless steel, PEEK
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 220x120x110 mm (8.67x4.72x4.33 in)
Weight 1.9 kg (4.19 Ib)
Optical cables no
