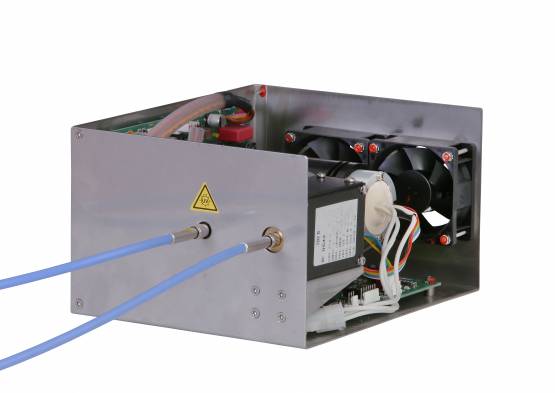

TOY18FIX EX Single UV Detector
200-600
FIX
Single UV detector version measure at one fix wavelength which is adjusted in production according to customer order in range of 200 – 600 nm.
- Description
- Parameters
- Files to download 1
The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
Most important features of TOY18FIX detectors:
•small dimensions
•built-in lamp working hours counter
•easy replacement of flow cell
•sophisticated diagnostic software
Wavelength range | 200-600 nm |
---|---|
Number of channels (Signals) | 1 |
Number of CCD elements | 256 |
Accuracy of adjustment | ± 1 nm |
Typical spectral half-width | 8 nm |
Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
Wetted materials | PTFE; fused silica, stainless steel |
Communication | RS232; optionally USB and LAN |
Power supply | 24 -36 V DC |
Power input | 48 W |
Dimensions W x H x D | 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in) |
Weight | 2,0 kg (4.4 lb) |
Optical cables | yes |
Filename | Type |
---|---|
Info-TOY18FIX_EX_detector-en-02.pdf | pdf (164,88 KB) |
