TOY18FIX EXL Dual UV Detector
The TOY18FIX EXL are built-in OEM UV detectors with SMA 905 connectors allowing the use of an external cell connected via optical cables. The dual UV detector version measures at 2 fixed wavelengths, which are adjusted in production according to the customer´s order in the range of 200–600 nm.
- Description
- Parameters
- Files to download 1
The TOY18FIX EXL are built-in OEM UV detectors with SMA 905 connectors allowing the use of an external cell connected via optical cables. They are designed to be used in preparative and flash chromatography in the 200–600 nm range.
The dual UV detector version measures at 2 fixed wavelengths, which are adjusted in production according to the customer´s order in the range of 200–600 nm.
Key features and benefits
- Compact size
- Built-in lamp working hours counter
- Cell connection via optical cable
- Advanced diagnostic software
Note: An external cell and optical cables are not a part of these units and must be ordered separately
| Number of channels (Signals) | 2 |
|---|---|
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 10 nm |
| Reproducibility | ± 0.5 nm |
| Drift at test cell (254 nm after 1 h) | 5 × 10–3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | depend on selected cell |

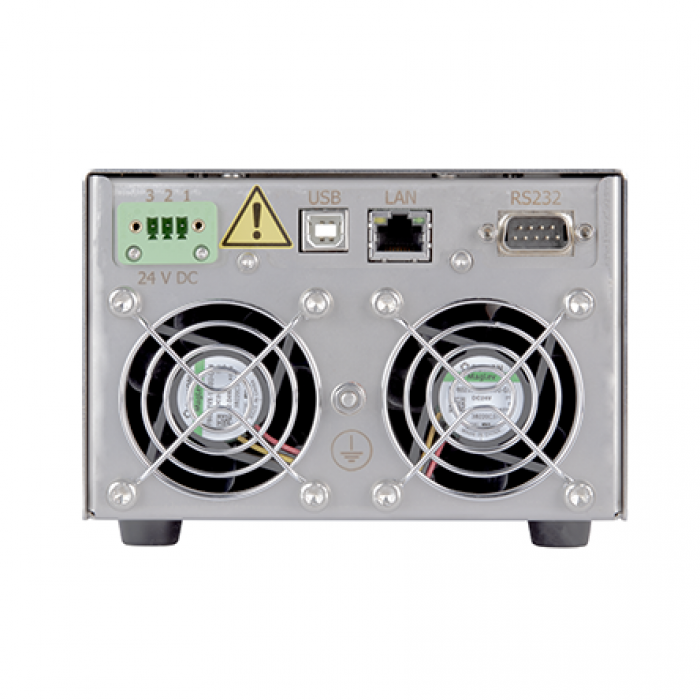

| Communication | RS232,Ethernet (LAN),USB |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Dimensions W x H x D | 142 × 100 × 220 mm (5.59 × 3.94 × 8.66 in) |
| Weight | 2.22 kg (4.89 lb) |
| Materials in contact with mobile phase | depends on the selected cell |
| Optical cables | yes |
| Filename | Type |
|---|---|
| Info-TOY18FIX_EXL_detector-en | pdf (448,09 KB) |
