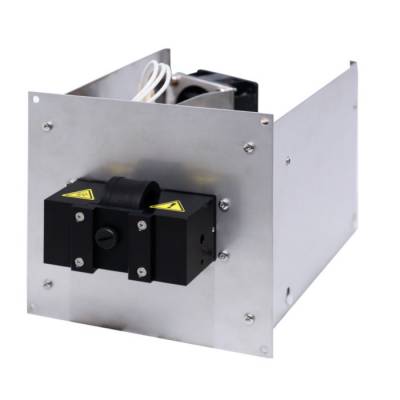

TOY20DAD 800 U Two Channel UV Detector
Two Channel version measures at two wavelengths simultaneously with possibility to see current scan.
Related variants
- Description
- Parameters
- Files to download 1
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
Most important features of TOYDAD U units:
- small dimensions
- easy replacement of flow cell
- built-in lamp working hours counter
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
| Number of channels (Signals) | 2 |
|---|---|
| Scan | 190-800, informative |
| Number of CCD elements | 256 |
| Communication | RS232 |
| Accuracy of adjustment | ± 1 nm /±0.5 nm |
| Typical spectral half-width | 10 nm |
| Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | PTFE; fused silica, stainless steel |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Optical cables | no |
| Dimensions W x H x D | 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in) |
| Weight | 2,0 kg (4.4 lb) |
| Filename | Type |
|---|---|
| Info-TOY20DAD800U_detector-en-01.pdf | pdf (162,89 KB) |
